Kennametal

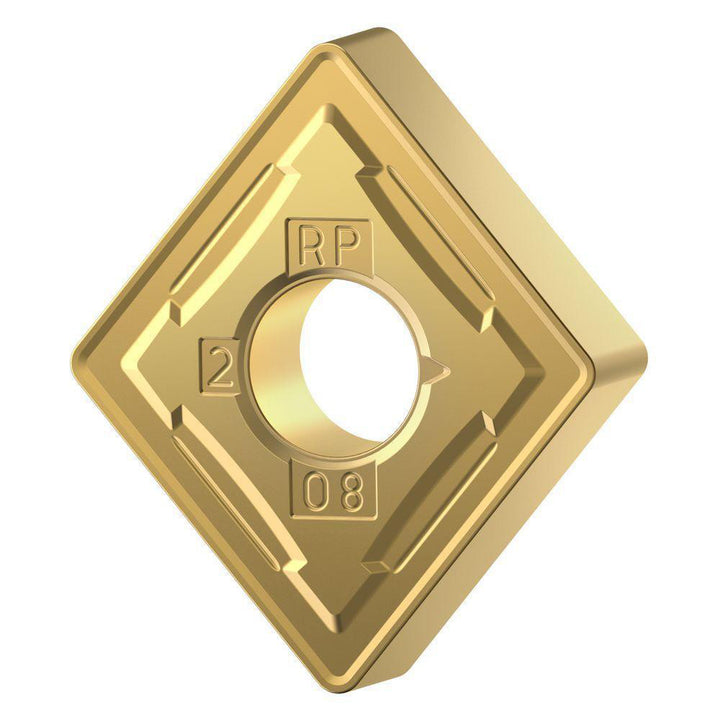

Diamond 5/8" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093274
MFR# 7093274
$38.03List $45.62
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7093274 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerRP
Clearance codeN
Coating finishAlTiN
Corner radius in3/64
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert materialCarbide
Insert shapeDiamond
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Manufacturer gradeKCU10B
Number of cutting edges8
Relief angle0.000
Tolerance codeM
Width in1/4
