Kennametal

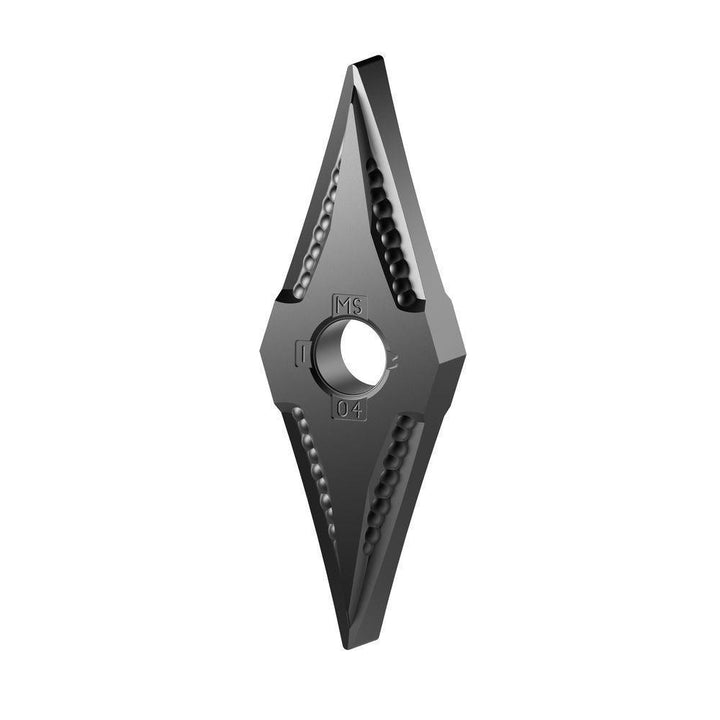

Diamond Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093314
MFR# 7093314
$24.50List $29.90
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7093314 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerMS
Clearance codeN
Coating finishAlTiN
Corner radius in1/64
Included angle35
Insert handNeutral
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Manufacturer gradeKCU10B
Number of cutting edges4
Relief angle0.000
Tolerance codeM
Width in3/16
