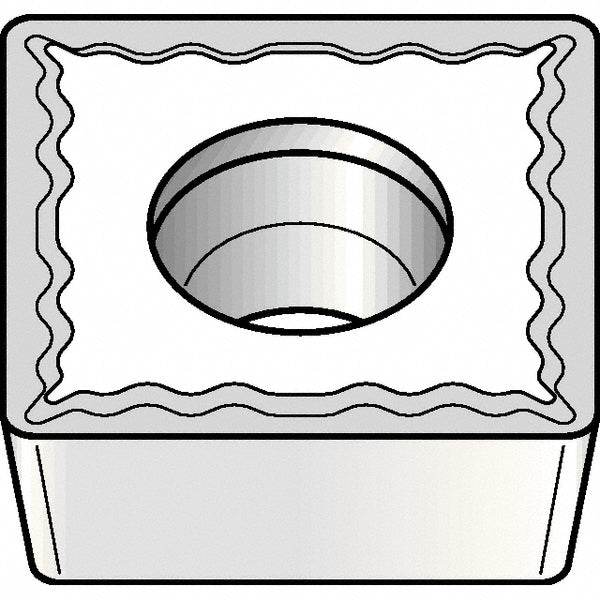

S - Square 0.3750" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093378

Kennametal

S - Square 0.3750" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093378

MFR# 7093378ISO/ANSI# SCMT09T308

$22.94List $28.00 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeS - Square
GradeKCU10B
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 7093378 is a carbide indexable insert, grade KCU10B, AlTiN coated.

Specifications

Ansi insert codeSCMT3252
Ansi size code3252
Chip breakerUF
Chip breaker operationFinishing
Clearance codeC
Coating finishAlTiN
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Included angle90
Inscribed circle0.3750
Insert handNeutral
Insert materialCarbide
Insert shapeS - Square
Insert size code3252
Insert styleSCMT
Insert thickness in5/32
Iso insert codeSCMT09T308
Iso size code09T308
Manufacturer gradeKCU10B
Number of cutting edges4
Relief angle7
Side clearancePositive
Tolerance codeM
Width in5/32
