Kennametal

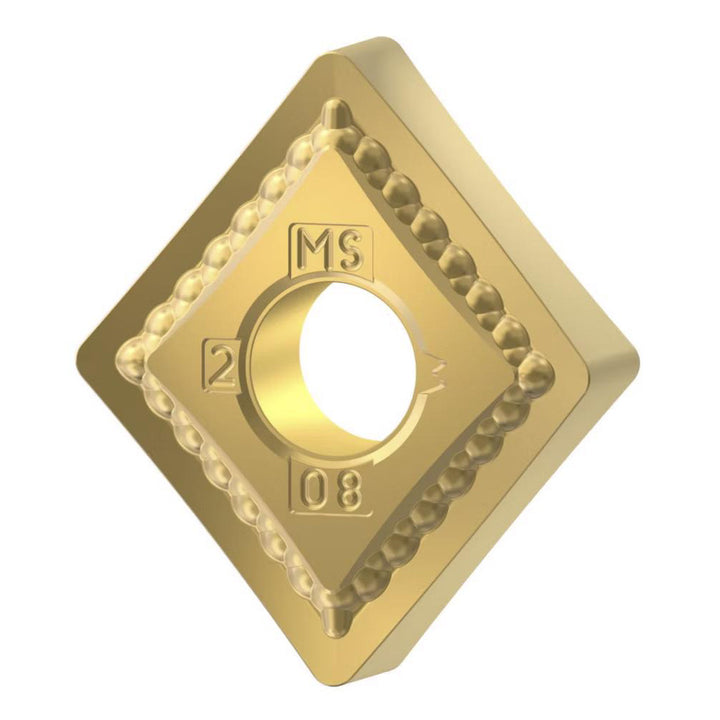

C - Diamond (Rhombic) 80-Deg 0.5000" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093476
MFR# 7093476ISO/ANSI# CNMG120404
$23.45List $28.12
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7093476 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Ansi insert codeCNMG431
Ansi size code431
Chip breakerMS
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAlTiN
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Included angle80
Inscribed circle0.5000
Insert handNeutral
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso insert codeCNMG120404
Iso size code120404
Manufacturer gradeKCU10B
Number of cutting edges4
Relief angle0
Side clearanceNegative
Tolerance codeM
Width in3/16
