Kennametal
Trigon Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093522
MFR# 7093522
$23.87List $28.63
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description

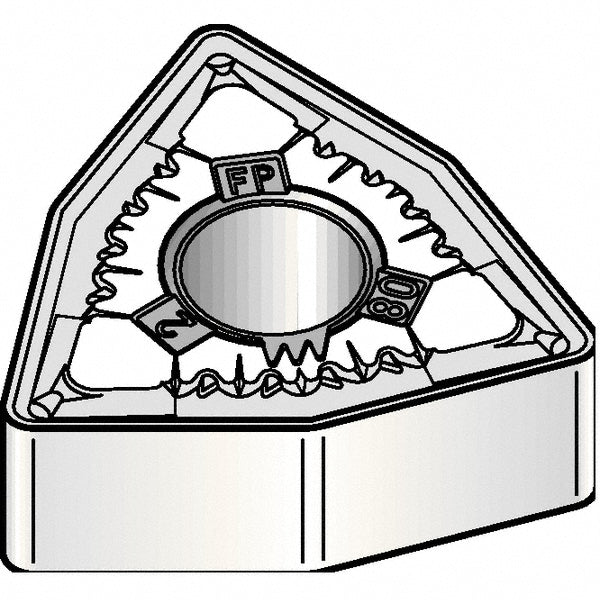

The Kennametal 7093522 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerFP
Clearance codeN
Coating finishAlTiN
Corner radius in1/32
Included angle80
Insert handNeutral
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Manufacturer gradeKCU10B
Number of cutting edges6
Relief angle0.000
Tolerance codeM
Width in3/16
