Kennametal
DCGR150404 Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7096254
MFR# 7096254ISO/ANSI# DCGR150404
$26.06List $31.81
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description

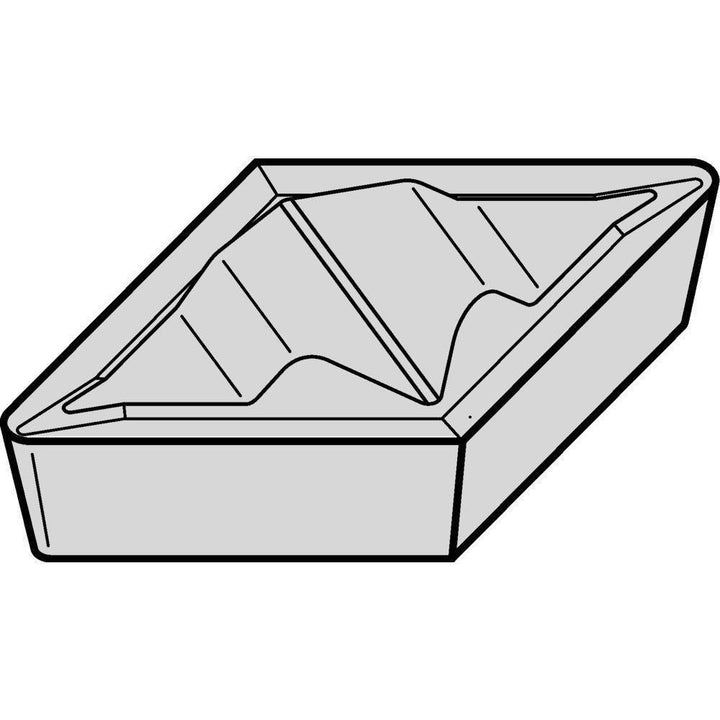

The Kennametal 7096254 is a DCGR150404 carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Included angle55.00
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert materialCarbide
Insert size code431
Insert styleDPGR
Iso codeDCGR150404
Manufacturer gradeKCU10B
Maximum depth of cut0.2035
Number of cutting edges4
Rake angle11.000
Relief angle11.000
Thickness in3/16
Width in3/16
