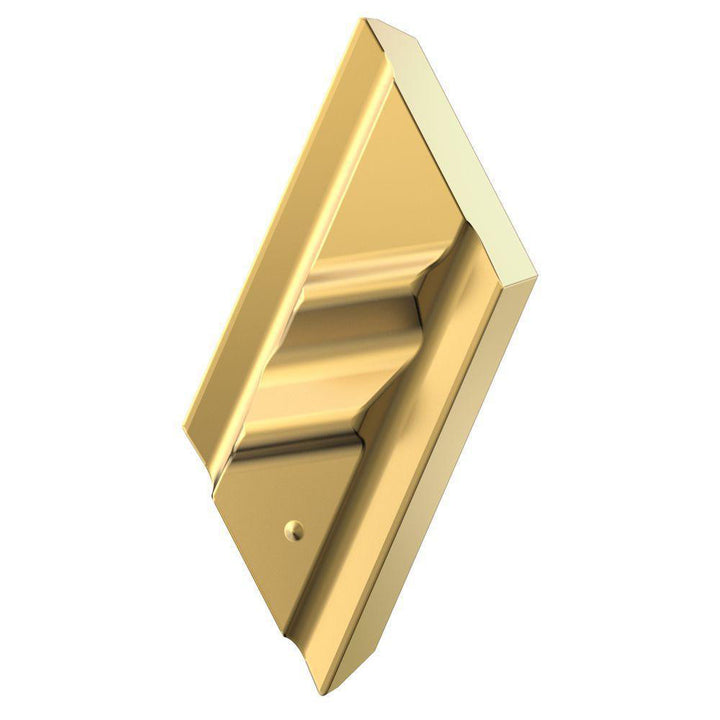

KCGX110304R15 Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7096313
MFR# 7096313ISO/ANSI# KCGX110304R15
$20.85List $25.45
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7096313 is a KCGX110304R15 carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0156
Included angle55.00
Inscribed circle0.2490
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size code51
Insert styleNPR
Iso codeKCGX110304R15
Manufacturer gradeKCU10B
Rake angle8.000
Relief angle8.000
ShapeParallelogram
Thickness in1/8
Width in1/8
