Kennametal

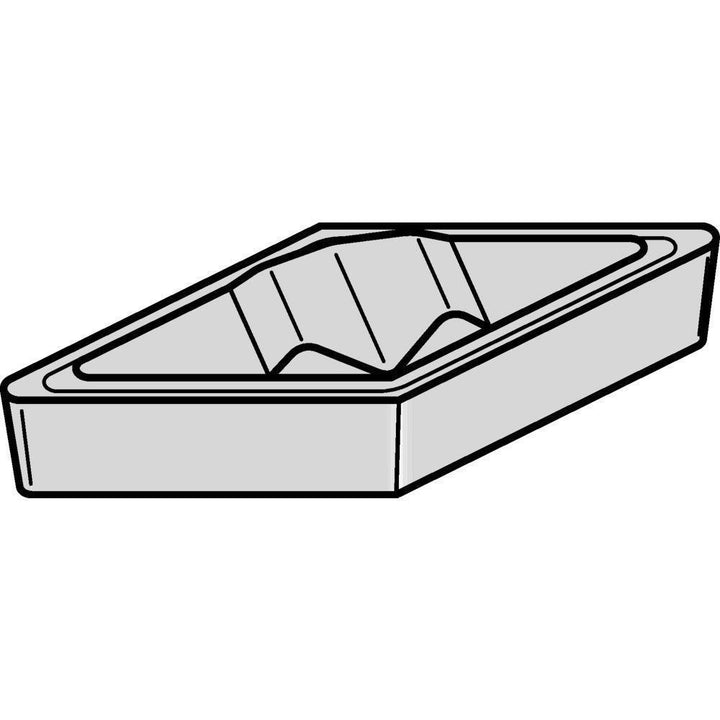

VCGR160408 Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7096333
MFR# 7096333ISO/ANSI# VCGR160408
$30.96List $37.79
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7096333 is a VCGR160408 carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0312
Included angle35.00
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert materialCarbide
Insert size code332
Insert styleVPGR
Iso codeVCGR160408
Manufacturer gradeKCU10B
Maximum depth of cut0.2179
Number of cutting edges4
Rake angle8.000
Relief angle8.000
Thickness in3/16
Width in3/16
