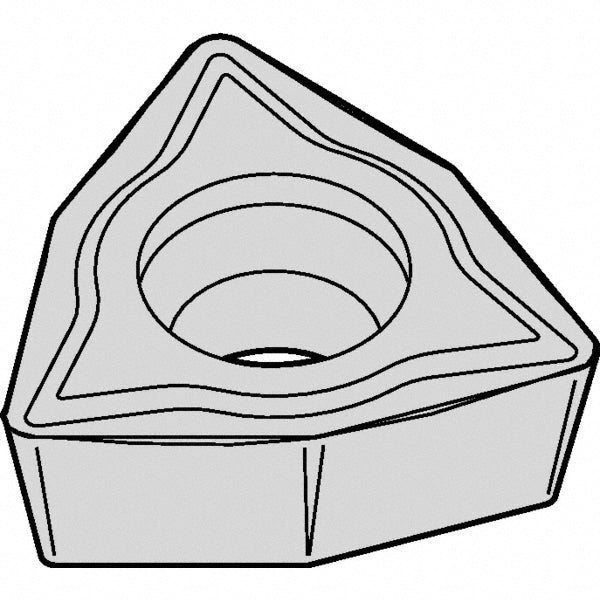

W - Trigon 80-Deg 0.2500" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7096390

Kennametal

W - Trigon 80-Deg 0.2500" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7096390

MFR# 7096390ISO/ANSI# WPHTS30102

$15.96List $19.48 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeW - Trigon 80-Deg
GradeKCU10B
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 7096390 is a carbide indexable insert, grade KCU10B, AlTiN coated.

Specifications

Ansi insert codeWPHT15105
Ansi size code15105
Chip breakerUF
Chip breaker operationFinishing
Clearance codeP
Coating finishAlTiN
Corner radius0.0080
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Included angle80
Inscribed circle0.2500
Insert handNeutral
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code1510
Insert styleWPHT
Insert thickness0.0620
Iso insert codeWPHTS30102
Iso size codeS30102
Manufacturer gradeKCU10B
Number of cutting edges3
Relief angle11
Side clearancePositive
Tolerance codeH
Width0.0620
