Kennametal

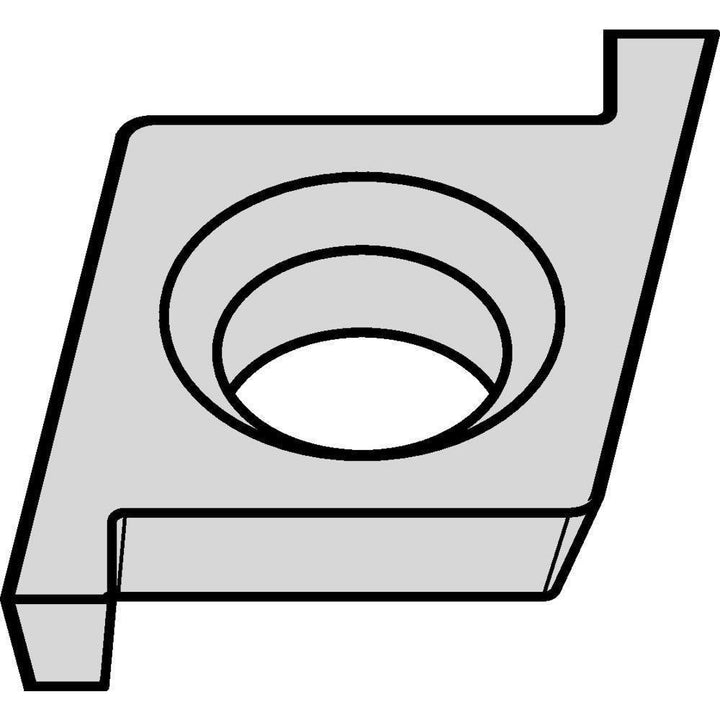

0.1560" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7096407
MFR# 7096407
$35.37List $43.17
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7096407 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerNone
Coating finishAlTiN
Corner radius0.0780
Cutting width0.0300
Face groovingNo
Full radiusNo
Included angle degree80
Inscribed circle0.1560
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert size1.2
Insert size code120302
Insert styleCDG
Insert thickness0.0500
Lead angle15.000
Manufacturer gradeKCU10B
Maximum depth of cut0.0750
Multi use toolYes
Number of cutting edges2
Overall width0.0500
RakePositive
Relief angle15
