Kennametal

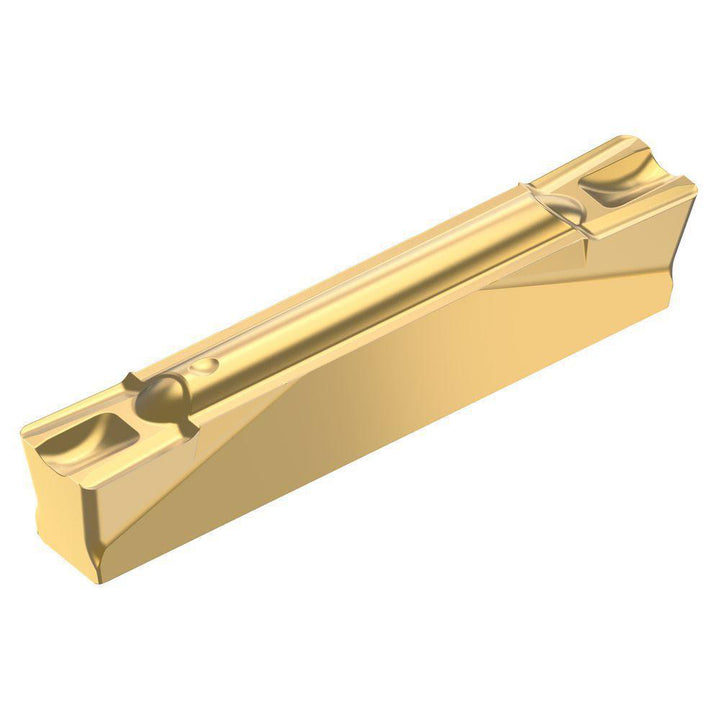

Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7096820
MFR# 7096820Series A4
$42.86List $52.32
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7096820 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerGMP
Coating finishAlTiN
Coating processPVD
Corner radius0.0984
Cutting width0.1970
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size5
Insert size5
Insert size code5
Insert styleA4R
Insert thickness0.1970
Lead angle0.000
Manufacturer gradeKCU10B
Maximum depth of cut0.1600
Multi use toolYes
Number of cutting edges2
Overall length0.9800
RakePositive
Single or double endDouble End
