Kennametal
Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7096844
MFR# 7096844Series A4
$58.27List $71.13
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description

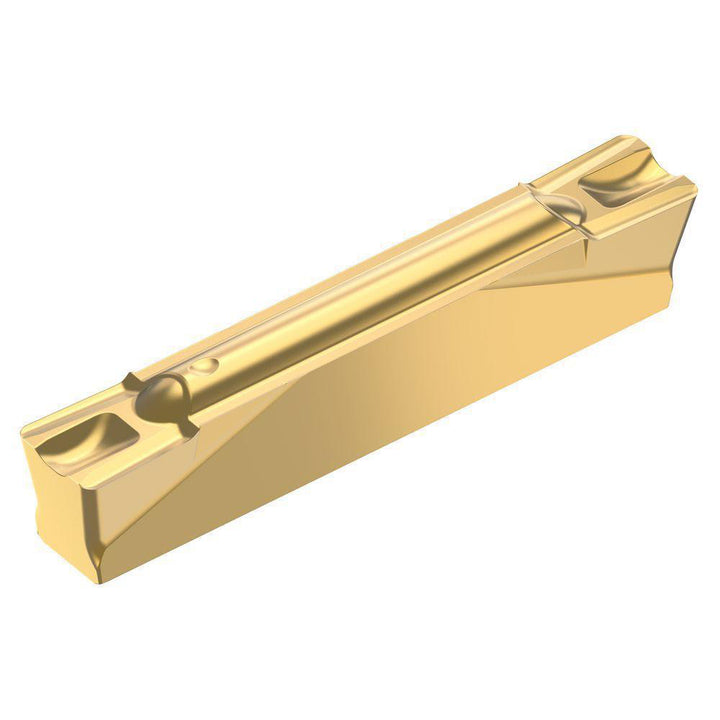

The Kennametal 7096844 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerGMP
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Cutting width0.3957
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size10
Insert size10
Insert size code10
Insert styleA4G
Insert thickness0.3957
Lead angle0.000
Manufacturer gradeKCU10B
Maximum depth of cut0.3190
Multi use toolYes
Number of cutting edges2
Overall length1.1850
RakePositive
Single or double endDouble End
