Kennametal

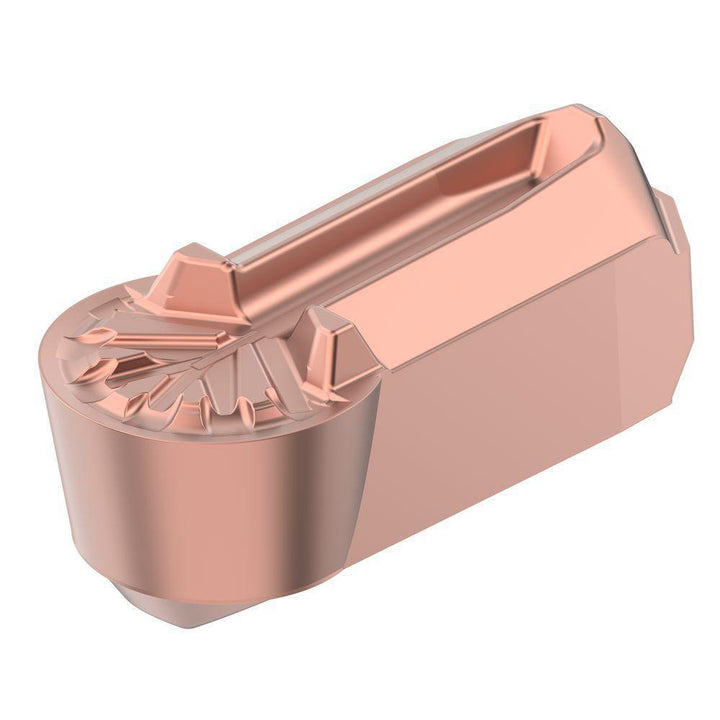

Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7096873
MFR# 7096873Series Beyond Evolution
$20.66List $25.22
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7096873 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0620
Cutting width0.1250
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size3
Insert size code3
Insert styleER
Insert thickness0.1250
Lead angle0.000
Manufacturer gradeKCU10B
Maximum depth of cut0.0590
Multi use toolYes
Number of cutting edges2
Overall length0.3760
RakePositive
Single or double endDouble End
