Kennametal

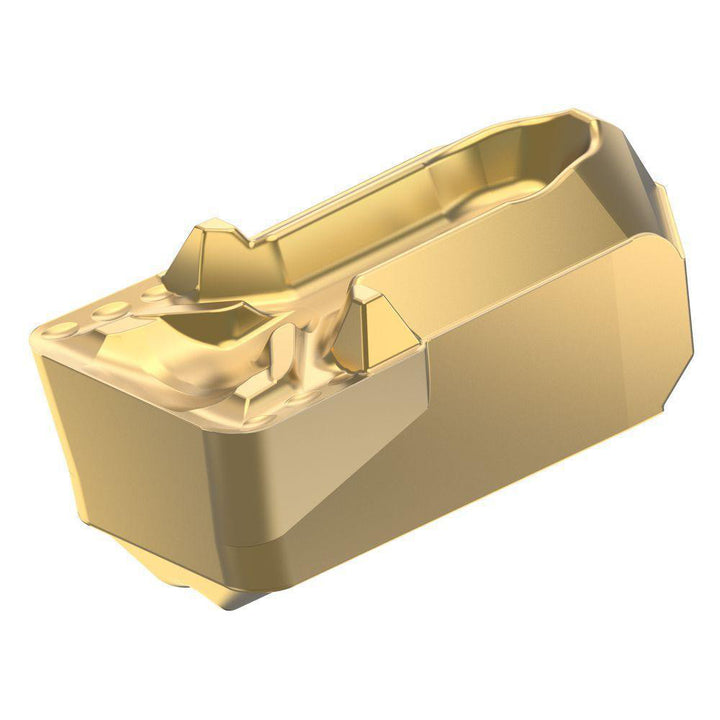

Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7096911
MFR# 7096911Series Beyond Evolution
$18.78List $22.92
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7096911 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Cutting width0.1230
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size3
Insert size code3
Insert styleEG
Insert thickness0.1230
Lead angle0.000
Manufacturer gradeKCU10B
Maximum depth of cut0.0870
Multi use toolYes
Number of cutting edges2
Overall length0.3780
RakePositive
Single or double endDouble End
