Kennametal

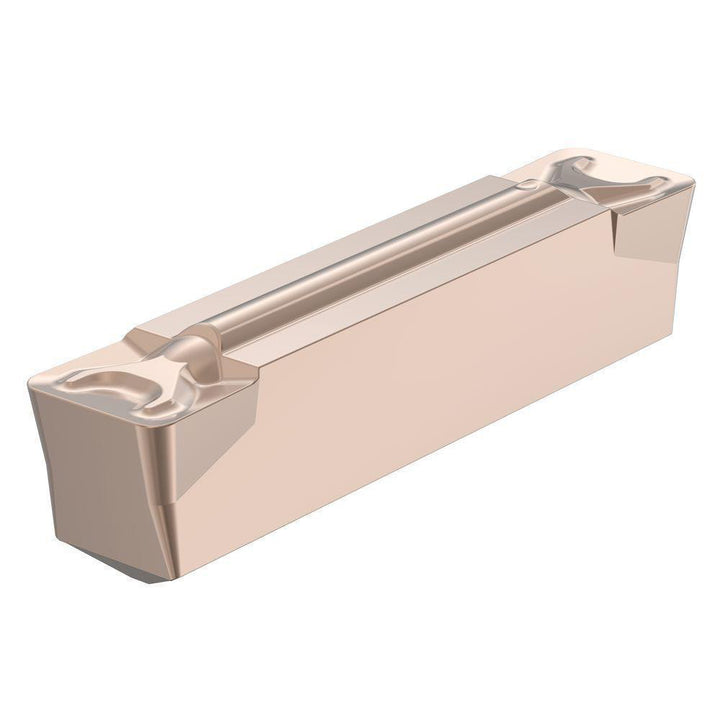

Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7097826
MFR# 7097826Series A4
$43.56List $52.25
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7097826 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerGMN
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Cutting width0.1990
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size5
Insert size5
Insert size code5
Insert styleA4G
Insert thickness0.1990
Lead angle0.000
Manufacturer gradeKCU10B
Maximum depth of cut0.1650
Multi use toolYes
Number of cutting edges2
Overall length0.9840
RakePositive
Single or double endDouble End
