Kennametal

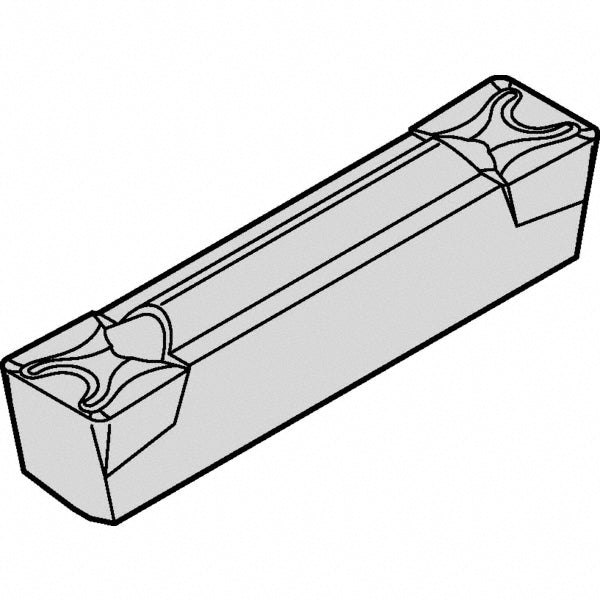

Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7097838
MFR# 7097838Series A4
$40.84List $48.98
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7097838 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerGMN
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Cutting width0.1250
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size3
Insert size code3
Insert styleA4G
Insert thickness0.1250
Lead angle0.000
Manufacturer gradeKCU10B
Maximum depth of cut0.1340
Multi use toolYes
Number of cutting edges2
Overall length0.7870
RakePositive
Single or double endDouble End
