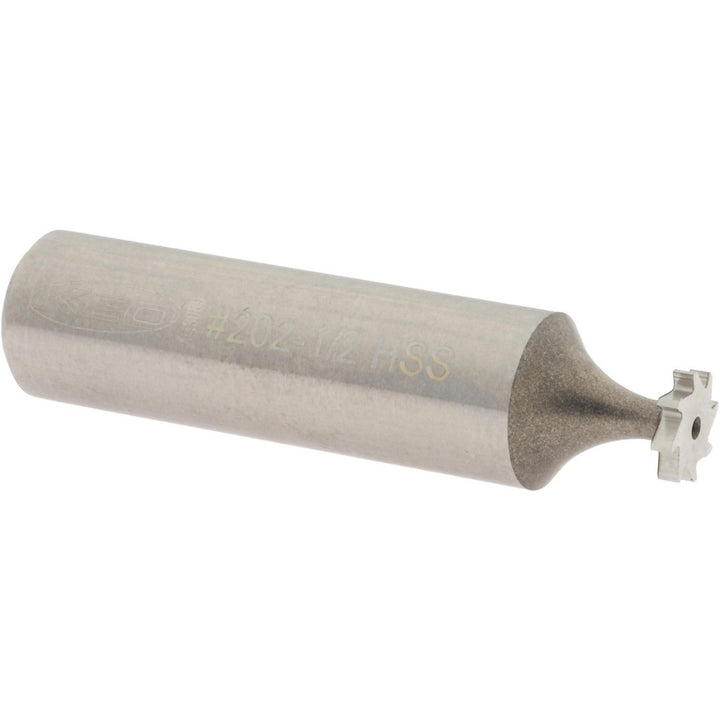

Woodruff/Keyseat Cutters & Sets - Keo 943-000-009

Keo

Woodruff/Keyseat Cutters & Sets - Keo 943-000-009

MFR# 943-000-009

$29.49List $40.53 Save 27%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Cutter dia.5/16

Description

The Keo 943-000-009 woodruff/keyseat cutters & sets. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hardened alloy.

Specifications

American standard number202-1/2
Connection typeShank
Cutter diameter in5/16
Cutter materialHigh Speed Steel
Cutting width in1/16
Neck length0.3750
Number of teeth8
Old standard number206
Overall length in2-1/16
Oversized for resharpeningNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hardened Alloy
Shank diameter in1/2
Tooth configurationStraight
Weldon flatNo
