Kurt

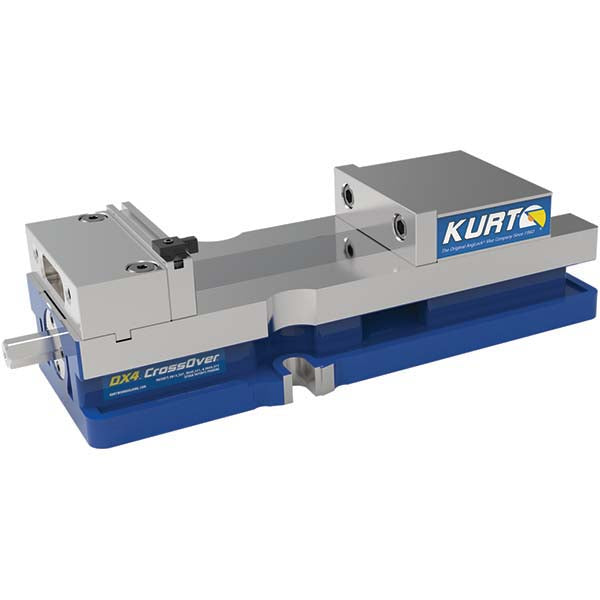

4.00" Jaw Milling Vise - Kurt DX4R
MFR# DX4R
$739.02List $872.00
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kurt DX4R is a ductile iron milling vise.
Specifications
Base height in2-1/4
Base length in12-1/2
Base motion typeStationary
Base width in4.9620
FeaturesAnglock® Design; Chip Evacuation; Chip Guard; Crossover® Vise; Groove Lock® Jaw Plate; Hardened Vise Bed; Powder Coat Paint; Semi-Hard Screw
IncludesHandle
Jaw height1.2350
Jaw materialSteel
Jaw width4.00
Maximum clamping force ft lb7500.00
Number of stations1
Operation typeReverse Manual
Orientation typeHorizontal
Overall height3.3650
Overall length14.5600
Overall width4.9620
PrecisionYes
Throat depth in1-15/64
Vise materialDuctile Iron
