Kurt

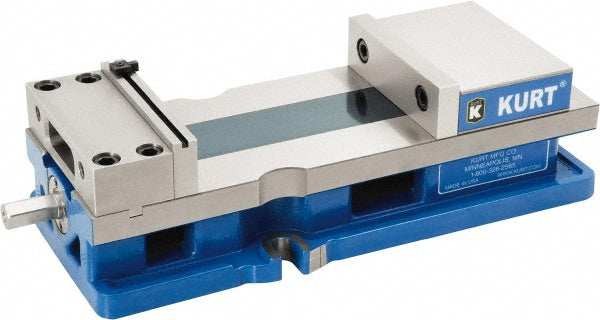

6.00" Jaw Milling Vise - Kurt HD691
MFR# HD691
$1,232.83
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kurt HD691 is a ductile iron milling vise.
Specifications
Base motion typeStationary
Base width in6.0000
FeaturesLess Deflection; Narrower Body; Quick Change Movable Jaw; Sine Key; Stable Stationary Jaw; St&ard Jaw Plate; Taller Body
IncludesGroove Lock Workstop
Jaw height1.7350
Jaw width6.00
Maximum clamping force ft lb12600.00
Number of stations1
Operation typeReverse Manual
Orientation typeHorizontal
Overall height4.8600
Overall length18.3850
PrecisionYes
Throat depth in1-47/64
Vise materialDuctile Iron
