Kyocera

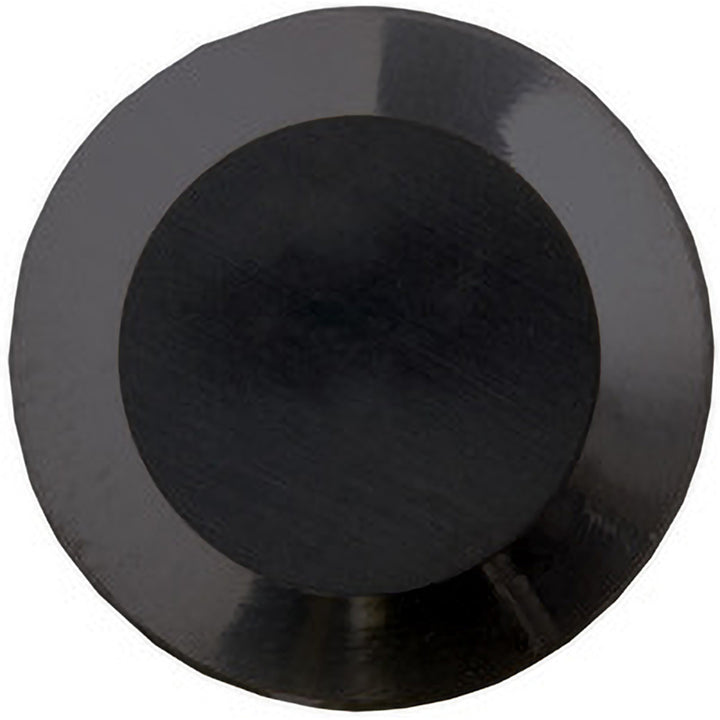

RCGX102T04015A65 Ceramic Insert, Grade A65, Al2O3 - Kyocera 8813077
MFR# 8813077ISO/ANSI# RCGX102T04015A65Series ISOI
$31.67List $44.78
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeRound
GradeA65
MaterialCeramic
CoatingAl2O3
Description
The Kyocera 8813077 is a RCGX102T04015A65 ceramic indexable insert, grade A65, Al2O3 coated. Suited for cast iron, hard material.
Specifications
Clearance codeC
Coating finishAl2O3
Coating processUncoated
Corner radius in1/8
Full radiusYes
Included angle360degree
Industry standard numberRCGX102T04015A65
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert length in1/4
Insert materialCeramic
Insert shapeRound
Insert size code102T0
Insert styleRCGX
Insert thickness0.1800
Iso codeRCGX102T04015A65
Length range0.0000 - 0.3000
Manufacturers catalog number8813077
Manufacturer gradeA65
Material gradeK01; K10; H01; H10
Maximum depth of cut0.1250
Multi use applicationExternal Turning; Facing; Roll Machining; Undercutting
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Hard Material
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
