Kyocera

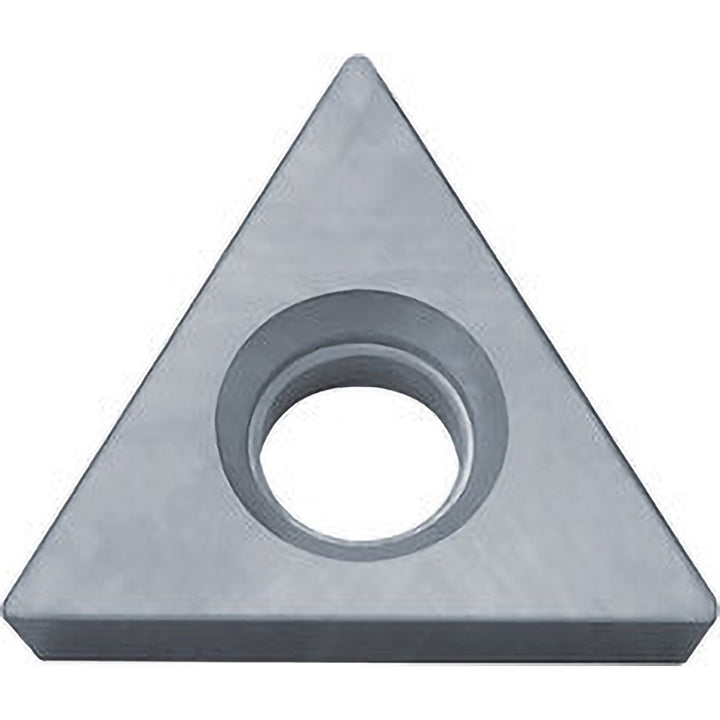

TPGB18151TN60 Cermet Insert, Grade TN60, TiCN - Kyocera 8849729
MFR# 8849729ISO/ANSI# TPGB18151TN60Series ISOI
$10.62List $15.28
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeTriangle
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera 8849729 is a TPGB18151TN60 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Clearance codeP
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Full radiusNo
Hole diameter0.1181
Included angle60degree
Industry standard numberTPGB18151TN60
Inscribed circle in7/32
Insert handNeutral
Insert holding methodScrew
Insert length0.7092
Insert materialCermet
Insert shapeTriangle
Insert size code18151
Insert styleTPGB
Insert thickness in3/32
Iso codeTPGB18151TN60
Length range0.7000 - 10.0000
Manufacturers catalog number8849729
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.2364
Multi use applicationBack Boring; Boring; Copying; External Turning; Internal Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.7092in
Wiper edgeNo
