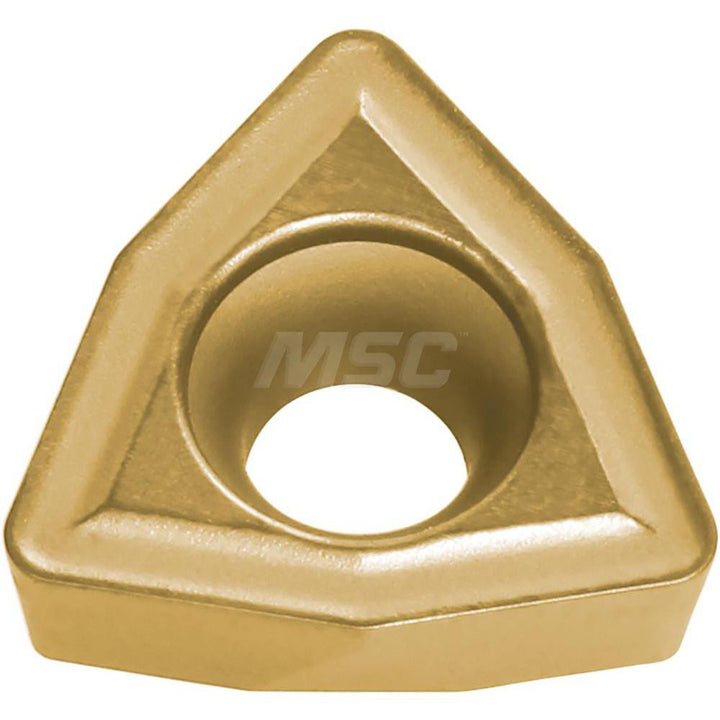

WCMX06T308M1A Solid Carbide Insert, Grade CA6535, Coated - Kyocera 8850611
MFR# 8850611ISO/ANSI# WCMX06T308M1A
$15.97List $22.97
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeCA6535
MaterialSolid Carbide
CoatingCoated
Description
The Kyocera 8850611 is a WCMX06T308M1A solid carbide indexable insert, grade CA6535, Coated coated. Suited for steel, superalloy, titanium.
Specifications
Ansi codeWCMX06T308M1A CA6535
ChipbreakerM1A
Coating finishCoated
Coating processCVD
Corner radius in1/32
Cutting directionRight Hand
Hole diameter0.1460
Included angle degree80
Inscribed circle in3/8
Insert materialSolid Carbide
Insert size06
Insert size code06
Insert styleWCMX
Iso codeWCMX06T308M1A
Manufacturer gradeCA6535
Primary workpiece materialSteel; Superalloy; Titanium
Relief angle7
ShapeTrigon
StandardsANSI; ISO
Thickness in5/32
