Kyocera

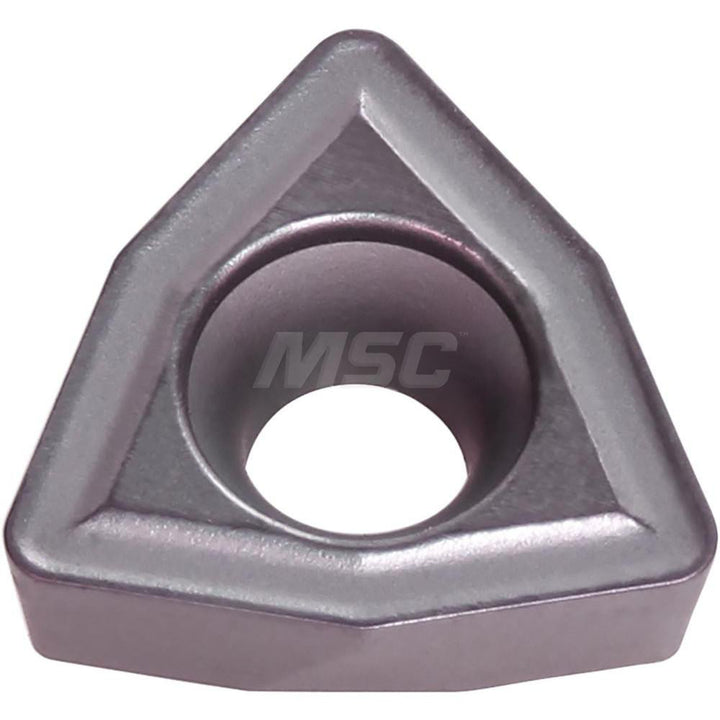

WCMX040204M1A Solid Carbide Insert, Grade PR1230, Coated - Kyocera 8850625
MFR# 8850625ISO/ANSI# WCMX040204M1A
$17.25List $24.39
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradePR1230
MaterialSolid Carbide
CoatingCoated
Description
The Kyocera 8850625 is a WCMX040204M1A solid carbide indexable insert, grade PR1230, Coated coated. Suited for steel.
Specifications
Ansi codeWCMX040204M1A PR1230
ChipbreakerM1A
Coating finishCoated
Coating processPVD
Corner radius in1/64
Cutting directionRight Hand
Hole diameter0.1100
Included angle degree80
Inscribed circle in1/4
Insert materialSolid Carbide
Insert size40204
Insert size code07
Insert styleWCMX
Iso codeWCMX040204M1A
Manufacturer gradePR1230
Primary workpiece materialSteel
Relief angle7
ShapeTrigon
StandardsANSI; ISO
Thickness0.0940
