Kyocera

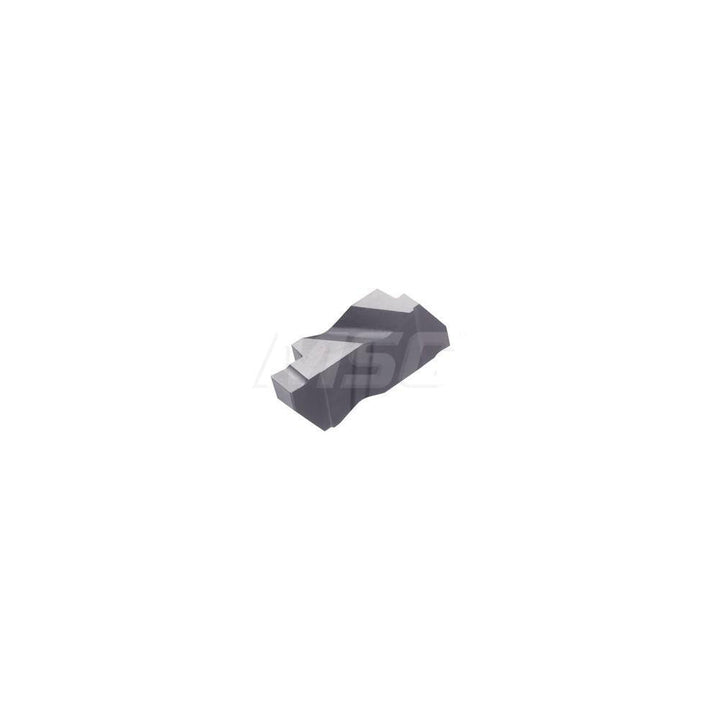

KCGP3072RPR1215 Carbide Insert, Grade PR1215, MEGACOAT - Kyocera 8850659
MFR# 8850659ISO/ANSI# KCGP3072RPR1215Cat# KCGP3072RSeries KCGP
$37.56List $53.11
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR1215
MaterialCarbide
CoatingMEGACOAT
Description
The Kyocera 8850659 is a KCGP3072RPR1215 carbide indexable insert, grade PR1215, MEGACOAT coated. Suited for steel.
Specifications
Ansi codeKCGP3072RPR1215
Coating finishMEGACOAT
Coating processPVD
Corner radius0.0080
Cutting height0.3440
Cutting width0.0720in
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3072
Insert size code3072
Insert styleKCGP
Insert thickness0.1950
Iso codeKCGP3072RPR1215
Lead angle3degree
Manufacturers catalog numberKCGP3072R
Manufacturer gradePR1215
Material gradeMicrograin
Maximum depth of cut0.0940
Maximum depth of cut range0.0750 to 0.1000
Multi use toolNo
Overall length0.8100in
Primary workpiece materialSteel
RakePositive
Rake angle3.00
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
