Kyocera

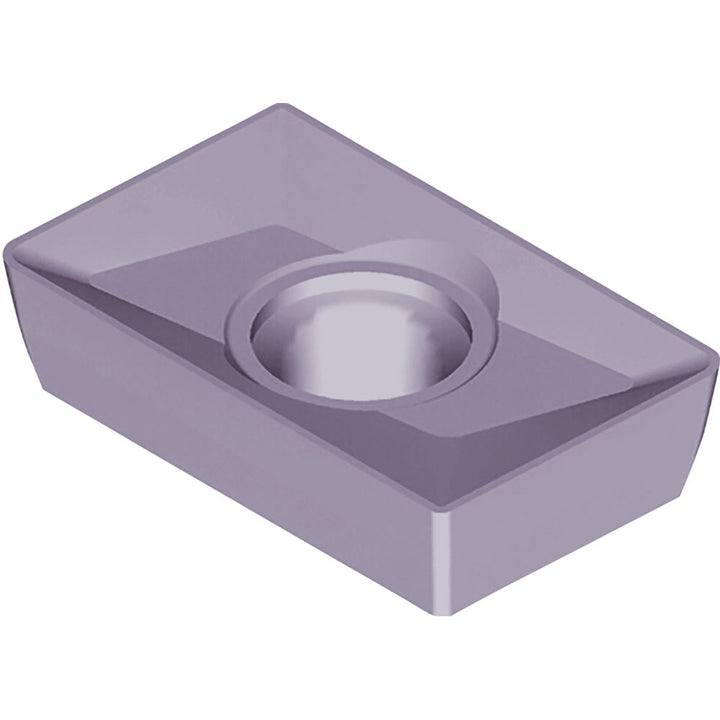

XPMT090208 Solid Carbide Insert, Grade PR1525, MEGACOAT NANO - Kyocera 8850717
MFR# 8850717ISO/ANSI# XPMT090208Cat# XPMT090208Series OTMM
$23.26List $32.89
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeParallelogram
GradePR1525
MaterialSolid Carbide
CoatingMEGACOAT NANO
Description
The Kyocera 8850717 is a XPMT090208 solid carbide indexable insert, grade PR1525, MEGACOAT NANO coated. Suited for steel.
Specifications
Ansi codeXPMT090208PR1525
Chip breakerCommon
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius in1/32
Cutter series compatibilityEM; CM
Cutting edge styleHoned
Hole diameter0.1102
Included angle degree87
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size09
Insert size code090208
Insert styleXPMT
Iso codeXPMT090208
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberXPMT090208
Manufacturer gradePR1525
Material applicationSteel; Stainless Steel
Maximum depth of cut0.3750
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle11
Secondary workpiece materialStainless Steel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/32
Thickness range0.0000 to 0.1000
Width in1/4
