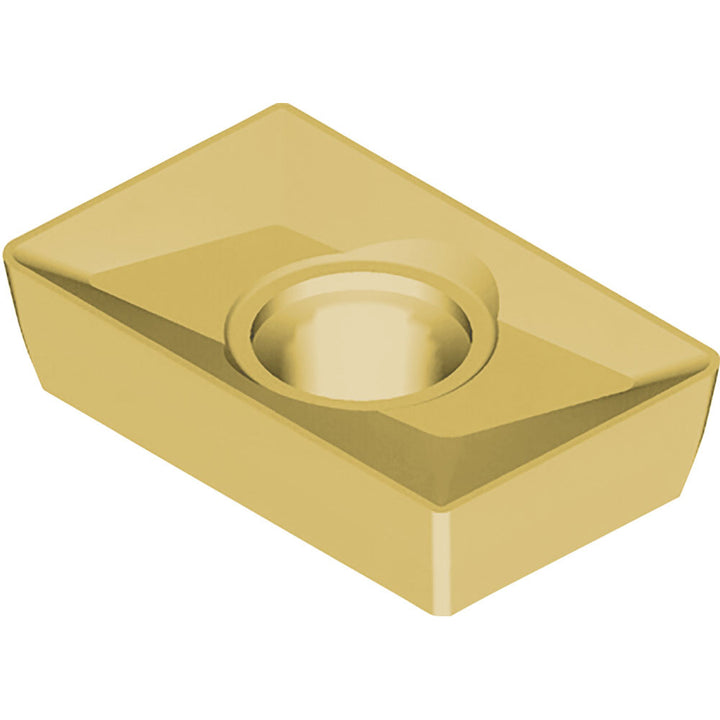

XPMT15T308CA6535 Solid Carbide Insert, Grade CA6535, TiCN - Kyocera 8857926

Kyocera

XPMT15T308CA6535 Solid Carbide Insert, Grade CA6535, TiCN - Kyocera 8857926

MFR# 8857926ISO/ANSI# XPMT15T308CA6535Cat# XPMT15T308Series OTMM

$21.78List $31.33 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeCA6535
MaterialSolid Carbide
CoatingTiCN

Description

The Kyocera 8857926 is a XPMT15T308CA6535 solid carbide indexable insert, grade CA6535, TiCN coated. Suited for stainless steel.

Specifications

Ansi codeXPMT15T308CA6535
Chip breakerCommon
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityEM; EM-LE; FM-RH; CM
Cutting edge styleHoned
Hole diameter0.1575
Included angle degree87
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code15T308
Insert styleXPMT
Iso codeXPMT15T308CA6535
Length0.6071
Length range0.6000 to 0.6500
Manufacturers catalog numberXPMT15T308
Manufacturer gradeCA6535
Material applicationStainless Steel; Superalloys & Titanium
Maximum depth of cut0.6071
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle11
Secondary workpiece materialSuperalloys & Titanium
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
