Kyocera

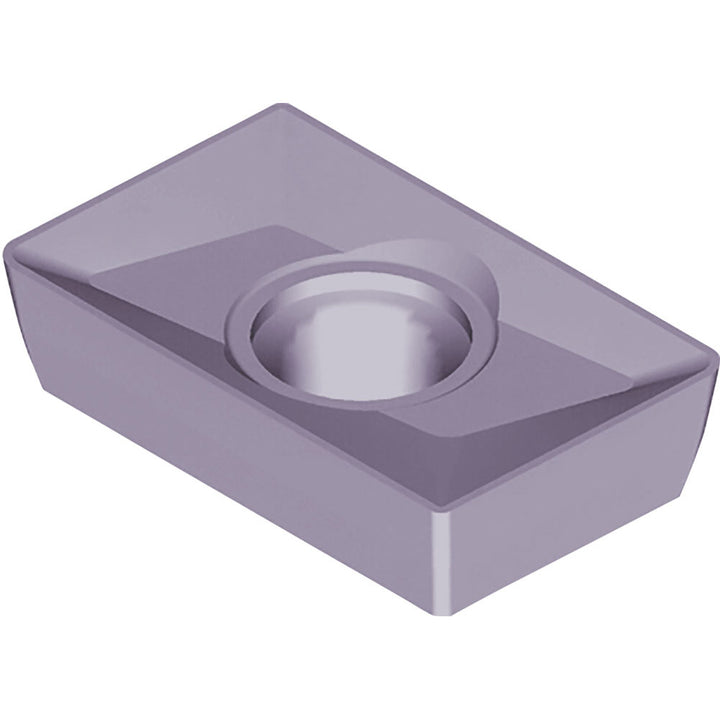

XPMT090208 Solid Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera 8860757
MFR# 8860757ISO/ANSI# XPMT090208Cat# XPMT090208Series OTMM
$21.57List $31.04
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeParallelogram
GradePR1535
MaterialSolid Carbide
CoatingMEGACOAT NANO
Description
The Kyocera 8860757 is a XPMT090208 solid carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeXPMT090208PR1535
Chip breakerCommon
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius in1/32
Cutter series compatibilityEM; CM
Cutting edge styleHoned
Hole diameter0.1102
Included angle degree87
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size09
Insert size code090208
Insert styleXPMT
Iso codeXPMT090208
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberXPMT090208
Manufacturer gradePR1535
Material applicationStainless Steel; Superalloys & Titanium; Steel; Stainless Steel; Cast Iron; Superalloys & Titanium
Maximum depth of cut0.3750
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/32
Thickness range0.0000 to 0.1000
Width in1/4
