Kyocera

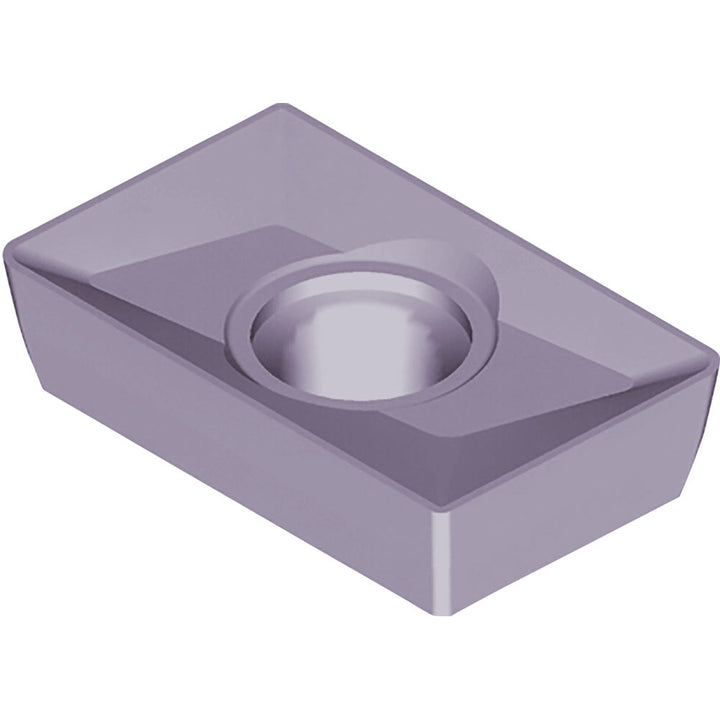

XPMT15T308 Solid Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera 8860947
MFR# 8860947ISO/ANSI# XPMT15T308Cat# XPMT15T308Series OTMM
$21.57List $31.04
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
GradePR1535
MaterialSolid Carbide
CoatingMEGACOAT NANO
Description
The Kyocera 8860947 is a XPMT15T308 solid carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeXPMT15T308PR1535
Chip breakerCommon
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius in1/32
Cutter series compatibilityEM; EM-LE; FM-RH; CM
Cutting edge styleHoned
Hole diameter0.1575
Included angle degree87
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code15T308
Insert styleXPMT
Iso codeXPMT15T308
Length0.6071
Length range0.6000 to 0.6500
Manufacturers catalog numberXPMT15T308
Manufacturer gradePR1535
Material applicationStainless Steel; Superalloys & Titanium; Steel; Stainless Steel; Cast Iron; Superalloys & Titanium
Maximum depth of cut0.6071
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
