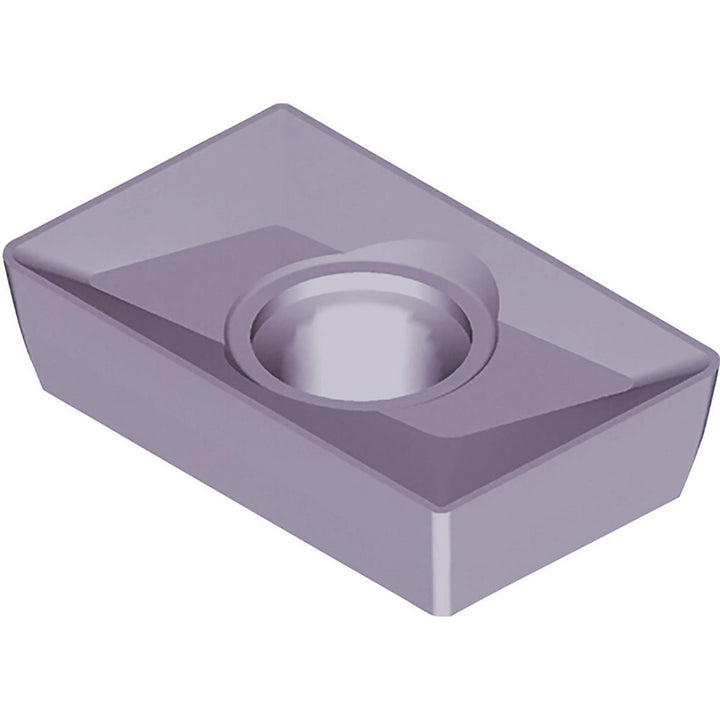

XPMT15T304 Solid Carbide Insert, Grade PR1510, MEGACOAT NANO - Kyocera 8861535

Kyocera

XPMT15T304 Solid Carbide Insert, Grade PR1510, MEGACOAT NANO - Kyocera 8861535

MFR# 8861535ISO/ANSI# XPMT15T304Cat# XPMT15T304Series OTMM

$21.57List $31.04 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradePR1510
MaterialSolid Carbide
CoatingMEGACOAT NANO

Description

The Kyocera 8861535 is a XPMT15T304 solid carbide indexable insert, grade PR1510, MEGACOAT NANO coated. Suited for cast iron.

Specifications

Ansi codeXPMT15T304PR1510
Chip breakerCommon
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius in1/64
Cutter series compatibilityEM; EM-LE; FM-RH; CM
Cutting edge styleChamfered; Honed
Hole diameter0.1575
Included angle degree87
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code15T304
Insert styleXPMT
Iso codeXPMT15T304
Length0.6071
Length range0.6000 to 0.6500
Manufacturers catalog numberXPMT15T304
Manufacturer gradePR1510
Material applicationCast Iron; Superalloys & Titanium
Maximum depth of cut0.6071
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle11.00
Secondary workpiece materialSuperalloys & Titanium
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
