Kyocera

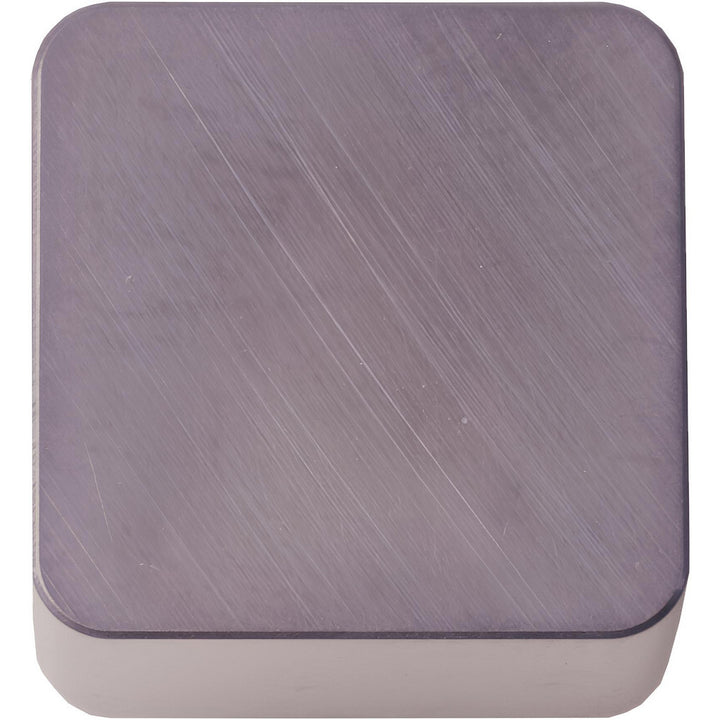

SNGA432T00625 Ceramic Insert, Grade PT600M, Al2O3 - Kyocera 8863001
MFR# 8863001ISO/ANSI# SNGA432T00625PT600MSeries ISOI
$12.86List $18.50
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradePT600M
MaterialCeramic
CoatingAl2O3
Description
The Kyocera 8863001 is a SNGA432T00625 ceramic indexable insert, grade PT600M, Al2O3 coated. Suited for hard material.
Specifications
Clearance codeN
Coating finishAl2O3
Coating processPVD
Corner radius in1/32
Full radiusNo
Hole diameter0.2032
Included angle90
Industry standard numberSNGA432T00625PT600M
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCeramic
Insert shapeSquare
Insert size code432
Insert styleSNGA
Insert thickness in3/16
Iso codeSNGA432T00625
Length range0.5000 - 0.6000
Manufacturers catalog number8863001
Manufacturer gradePT600M
Material gradeK01; K10
Maximum depth of cut0.1667
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges8
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeG
Width in1/2
Wiper edgeNo
