Kyocera

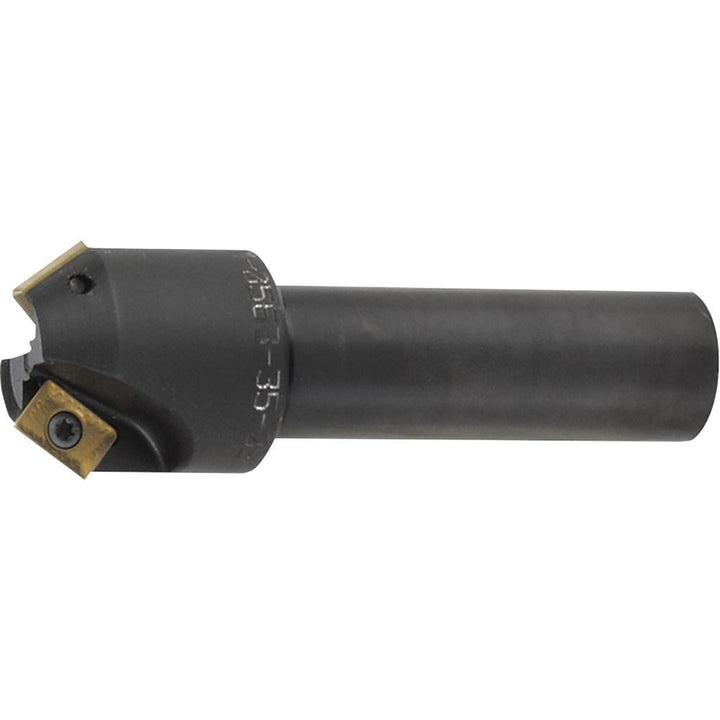

Indexable End Mills - Kyocera OTM86112
MFR# OTM86112
$227.02List $281.37
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kyocera OTM86112 indexable end mills.
Specifications
Compatible insert size codeXPMT 090208; XPMT 090216; XPMT 090224
Coolant throughNo
Cutting diameter0.5630
Cutting directionRight Hand
Functional length2.9100
Head length in1
Insert holding methodScrew
Insert styleXPMT 0902..
Maximum body diameter0.6250
Maximum cutting diameter0.5630
Maximum depth of cut0.2400
Minimum cutting diameter0.5630
Number of cutter inserts2
Overall length2.9100
Shank diameter in5/8
Shank typeWhistle Notch
Toolholder styleCM
Tool applicationFacing
Width0.2390
