Kyocera

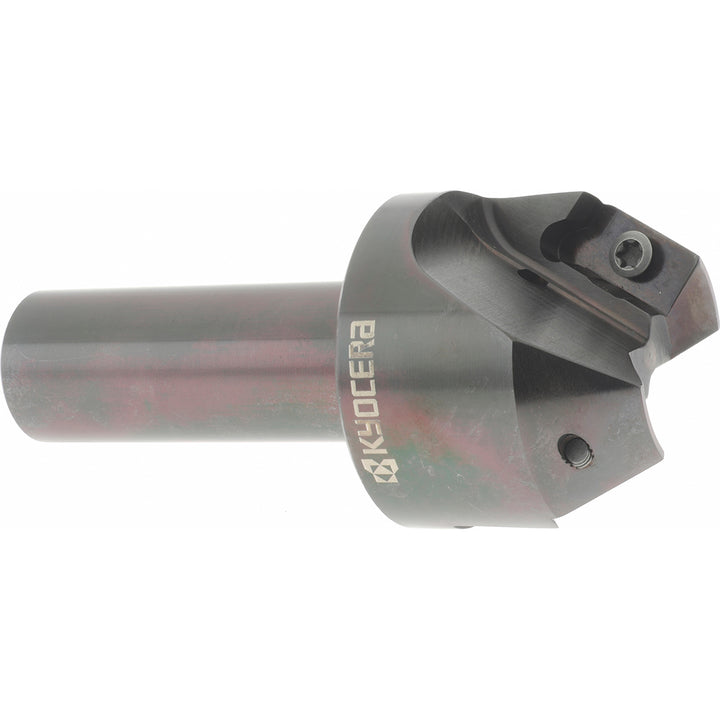

Indexable End Mills - Kyocera OTM86127
MFR# OTM86127Cat# CM 1000-30-AL
$255.40List $316.56
Save 19%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kyocera OTM86127 indexable end mills.
Specifications
Compatible insert size codeAPET1604
Coolant throughNo
Cutting directionRight Hand
Functional length3.2500
Head length1.3500
Included angle degree60
Insert holding methodScrew
Insert styleAPET 1604
Manufacturers catalog numberCM 1000-30-AL
Maximum body diameter0.7500
Maximum cutting diameter1.6200
Maximum depth of cut0.5440
Minimum cutting diameter in1
Number of cutter inserts2
Overall length3.2500
Shank diameter in3/4
Shank length2.0310
Shank typeWhistle Notch
Toolholder styleCM
Tool applicationFacing
Width0.3210
