Kyocera

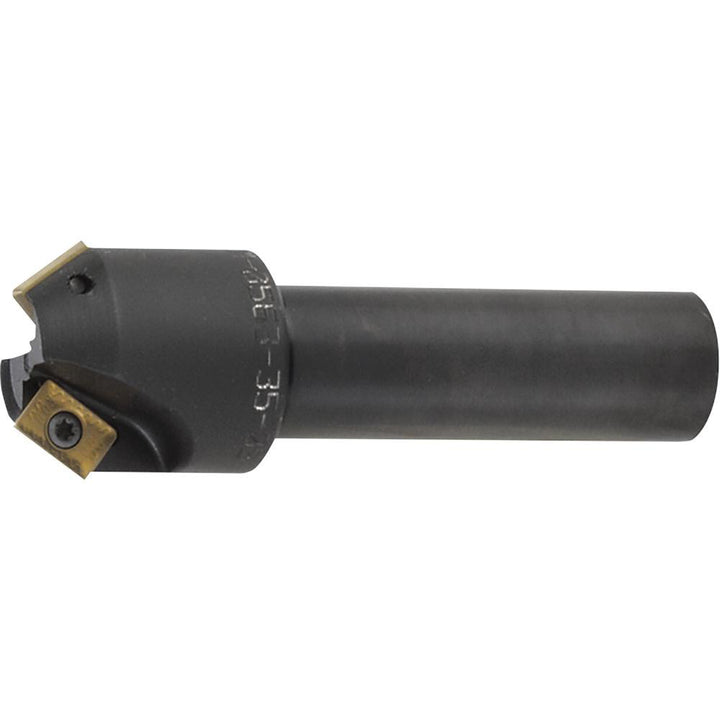

Indexable End Mills - Kyocera OTM86135
MFR# OTM86135Series CM
$279.19List $340.02
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kyocera OTM86135 indexable end mills. Series CM.
Specifications
Compatible insert size codeXPMT 15T304; XPMT 15T308; XPMT 15T316; XPMT 15T324; XPMT 15T331; XPMT 15T364
Coolant throughNo
Cutting diameter1.0000
Cutting directionRight Hand
Functional length3.1500
Head length in1-1/4
Insert holding methodScrew
Insert styleXPMT 15T3..
Maximum body diameter0.7500
Maximum cutting diameter in1
Maximum depth of cut0.1930
Minimum cutting diameter in1
Number of cutter inserts2
Overall length3.1500
Shank diameter in3/4
Shank typeWhistle Notch
Toolholder styleCM
Tool applicationFacing
Width0.5470
