Kyocera

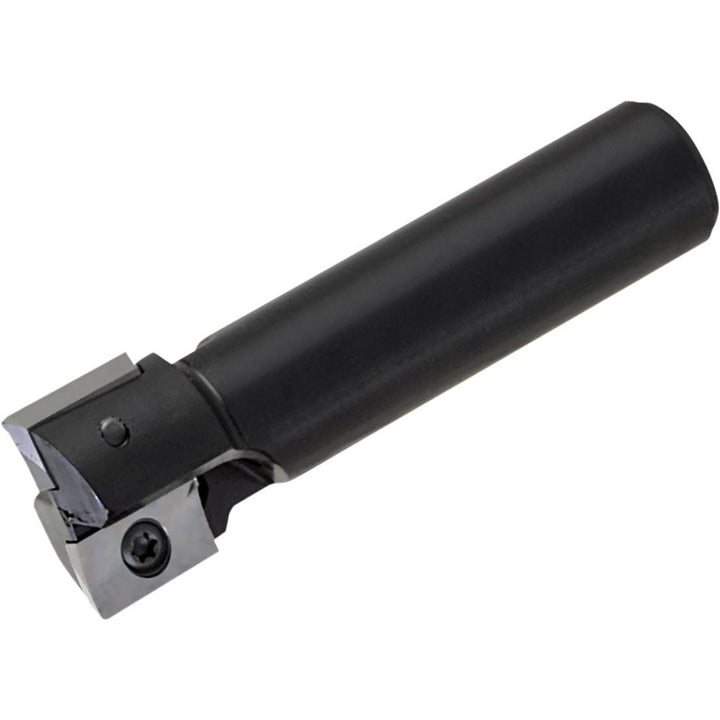

Indexable End Mills - Kyocera OTM86403
MFR# OTM86403Series EM
$255.40List $316.56
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Kyocera OTM86403 indexable end mills. Series EM.
Specifications
Center of screw to cutting edge4.8750
Coolant throughYes
Cutter styleEM-AL
Insert compatibilityAPET 1604
Insert holding methodScrew
Lead angle90
Maximum depth of cut0.6400
Number of cutter inserts2
Number of flutes2
Shank diameter in1
Shank typeWeldon Flat
Usable length3.7500
