Kyocera

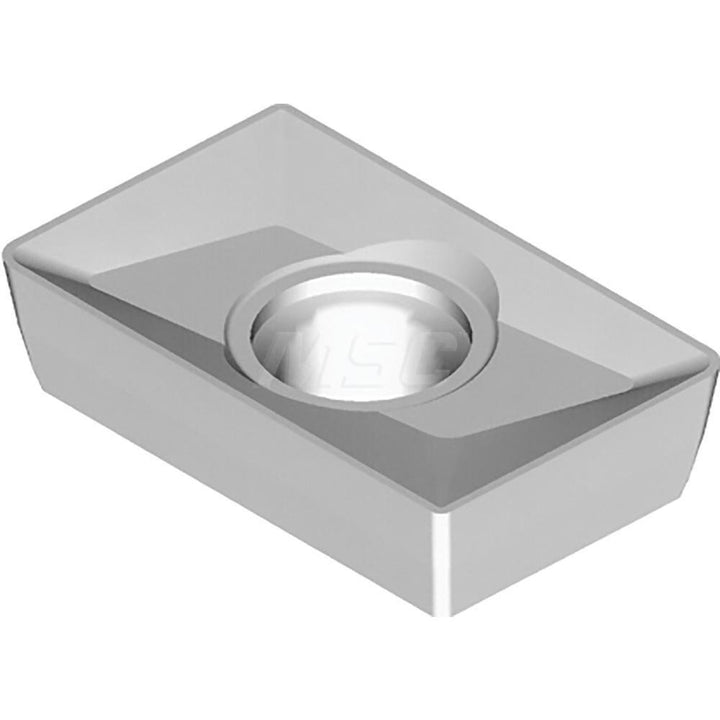

XPMT090208 Cermet Insert, Grade TN100M - Kyocera OTM86626
MFR# OTM86626ISO/ANSI# XPMT090208Cat# XPMT090208Series OTMM
$18.39List $26.00
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeParallelogram
GradeTN100M
MaterialCermet
Description
The Kyocera OTM86626 is a XPMT090208 cermet indexable insert, grade TN100M. Suited for steel.
Specifications
Ansi codeXPMT090208TN100M
Chip breakerCommon
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityEM; CM
Cutting edge styleHoned
Hole diameter0.1102
Included angle degree87
Inscribed circle in1/4
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialCermet
Insert shapeParallelogram
Insert size09
Insert size code090208
Insert styleXPMT
Iso codeXPMT090208
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberXPMT090208
Manufacturer gradeTN100M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Maximum depth of cut0.3750
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle11
Secondary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Materials
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/32
Thickness range0.0000 to 0.1000
Width0.2480
