Kyocera
Indexable Boring - Kyocera OTM87663
MFR# OTM87663Series DBCB
$296.14List $367.05
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

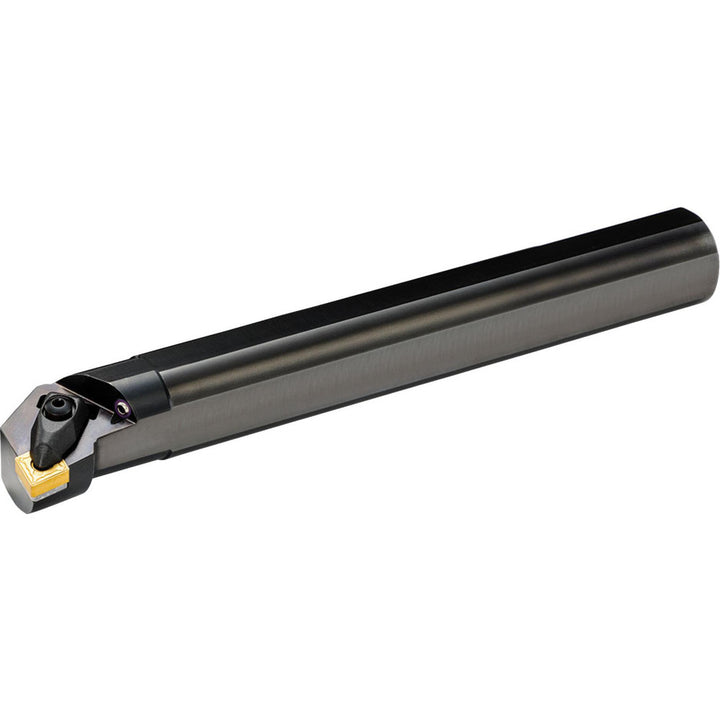

The Kyocera OTM87663 indexable boring. Series DBCB.
Specifications
Center to cutting edge0.6400
Compatible insert shapeDiamond
Compatible insert size code43
Compatible insert thickness0.1875
Coolant throughYes
Cutting tool applicationBoring; Facing
Hand of holderRight Hand
Insert compatibilityCNMG 43..
Insert holding methodScrew Clamping
Insert inscribed circle in1/2
Lead angle5
Maximum bore depth1.5750
Minimum bore diameter1.2500
Multi use toolYes
Number of inserts used on toolholder1
Overall length12.0000
RakeNegative
Rake angle-12.00
Shank diameter in1
Toolholder styleDCLN
Tool materialSteel
