Kyocera

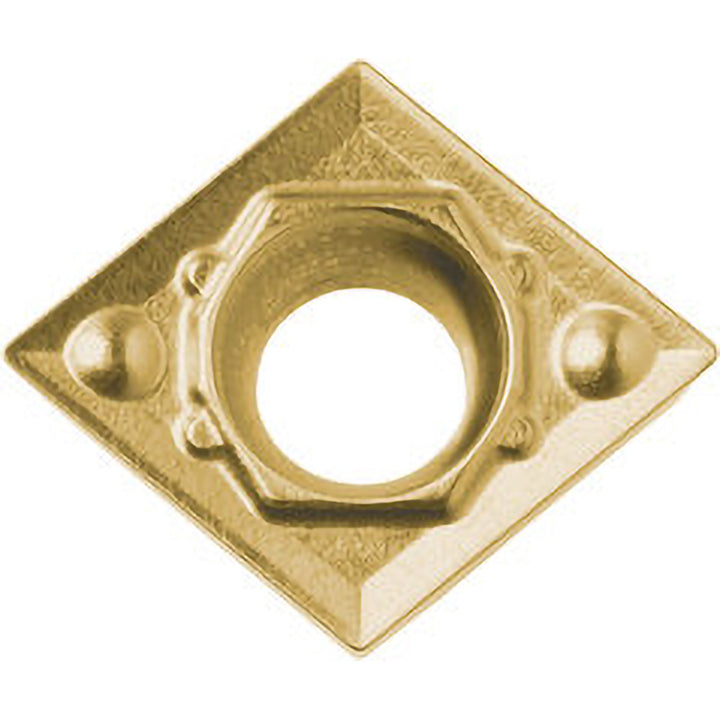

CCMT060204HQ Carbide Insert, Grade CA515, TiCN - Kyocera TAB00431
MFR# TAB00431ISO/ANSI# CCMT060204Series ISOI
$13.51List $19.45
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeCA515
MaterialCarbide
CoatingTiCN
Description
The Kyocera TAB00431 is a CCMT060204HQ carbide indexable insert, grade CA515, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCCMT2151
Ansi size code2151
Chip breakerHQ
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle80
Industry standard numberCCMT2151HQCA515
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length in1/4
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2151
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204HQ
Iso insert codeCCMT060204
Iso size code060204
Length range0.0000 - 0.3000
Manufacturers catalog numberTAB00431
Manufacturer gradeCA515
Material gradeP01; P10; P20; P30
Maximum depth of cut0.0833
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
