Kyocera

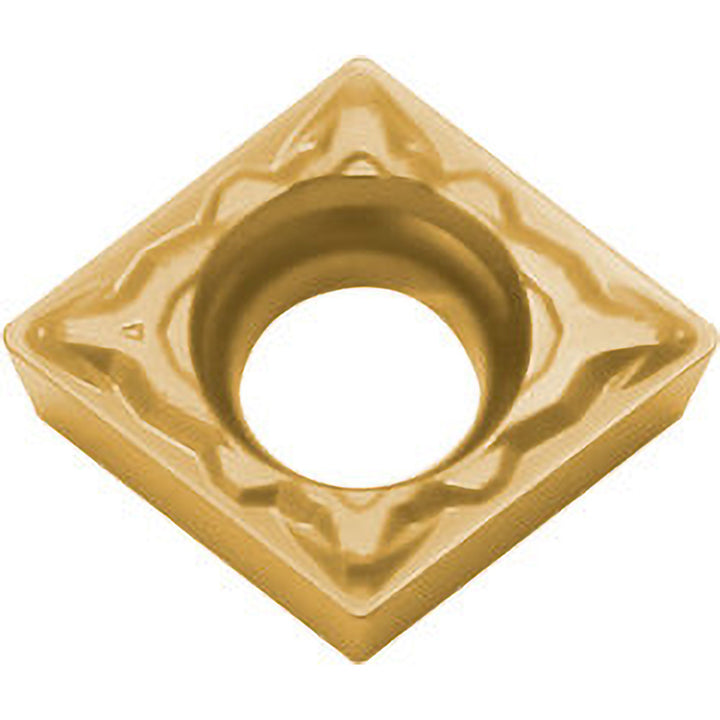

CCMT09T304PP Carbide Insert, Grade CA515, TiCN - Kyocera TAB00507
MFR# TAB00507ISO/ANSI# CCMT09T304Series ISOI
$15.36List $22.10
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeCA515
MaterialCarbide
CoatingTiCN
Description
The Kyocera TAB00507 is a CCMT09T304PP carbide indexable insert, grade CA515, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCCMT3251
Ansi size code3251
Chip breakerPP
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Industry standard numberCCMT3251PPCA515
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3251
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304PP
Iso insert codeCCMT09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturers catalog numberTAB00507
Manufacturer gradeCA515
Material gradeP01; P10; P20; P30
Maximum depth of cut0.1250
Maximum depth of cut frac in1/8
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle10
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
