Kyocera

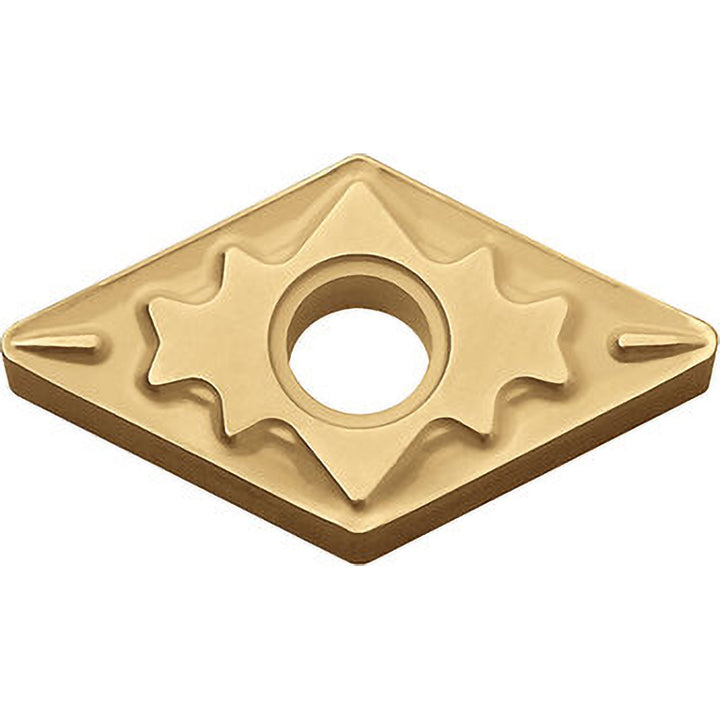

DNMG150408HQ Carbide Insert, Grade CA515, TiCN - Kyocera TAB02121
MFR# TAB02121ISO/ANSI# DNMG432HQCA515Series ISOI
$20.40List $29.35
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeCA515
MaterialCarbide
CoatingTiCN
Description
The Kyocera TAB02121 is a DNMG150408HQ carbide indexable insert, grade CA515, TiCN coated. Suited for steel.
Specifications
Chip breakerHQ
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2032
Included angle55
Industry standard numberDNMG432HQCA515
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.1820
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408HQ
Length range0.7000 - 10.0000
Manufacturers catalog numberTAB02121
Manufacturer gradeCA515
Material gradeP01; P10; P20; P30
Maximum depth of cut0.3940
Multi use applicationBoring; Copying; External Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle-15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
