Kyocera

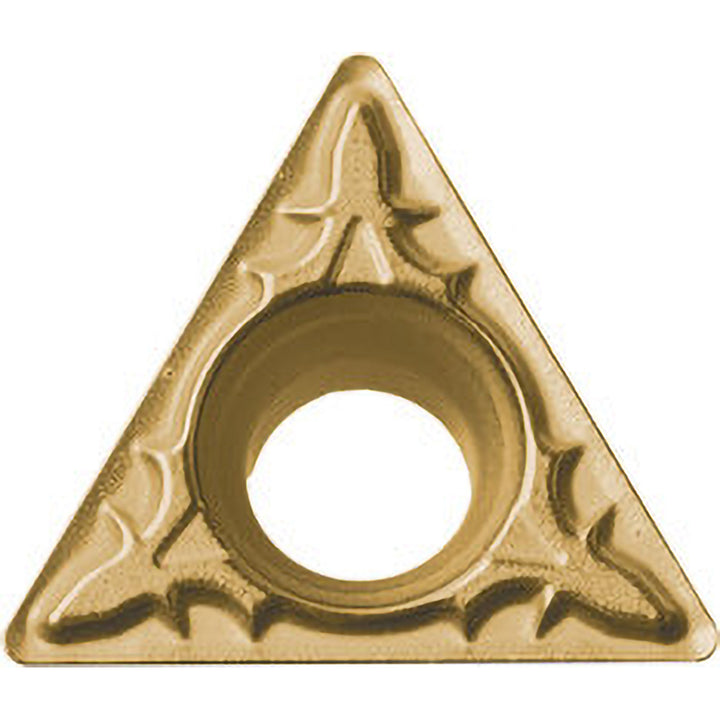

TPMT160308XP Carbide Insert, Grade CA515, TiCN - Kyocera TAB06976
MFR# TAB06976ISO/ANSI# TPMT322XPCA515Series ISOI
$12.26List $17.64
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeCA515
MaterialCarbide
CoatingTiCN
Description
The Kyocera TAB06976 is a TPMT160308XP carbide indexable insert, grade CA515, TiCN coated. Suited for steel.
Specifications
Chip breakerXP
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle60degree
Industry standard numberTPMT322XPCA515
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6501
Insert materialCarbide
Insert shapeTriangle
Insert size code322
Insert styleTPMT
Insert thickness in1/8
Iso codeTPMT160308XP
Length range0.6500 - 0.7000
Manufacturers catalog numberTAB06976
Manufacturer gradeCA515
Material gradeP01; P10; P20; P30
Maximum depth of cut0.2167
Multi use applicationBack Boring; Boring; Copying; External Turning; Internal Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Rake angle8
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width0.6501in
Wiper edgeNo
