Kyocera

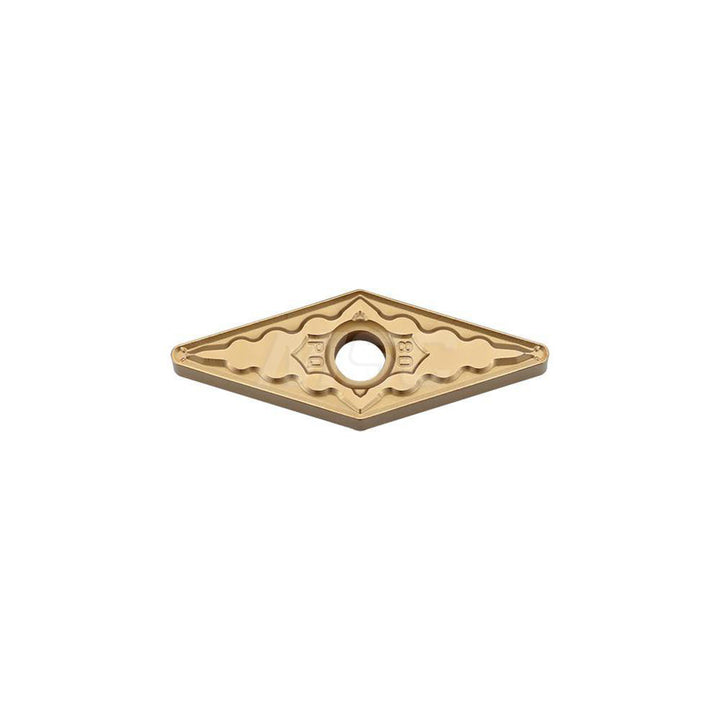

VNMG160404PQ Carbide Insert, Grade CA515, TiCN - Kyocera TAB07602
MFR# TAB07602ISO/ANSI# VNMG331PQCA515Series ISOI
$18.81List $27.07
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeCA515
MaterialCarbide
CoatingTiCN
Description
The Kyocera TAB07602 is a VNMG160404PQ carbide indexable insert, grade CA515, TiCN coated. Suited for steel.
Specifications
Chip breakerPQ
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG331PQCA515
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3080
Insert materialCarbide
Insert shapeDiamond 35
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404PQ
Length range0.7000 - 10.0000
Manufacturers catalog numberTAB07602
Manufacturer gradeCA515
Material gradeP01; P10; P20; P30
Maximum depth of cut0.4360
Multi use applicationCopying; External Turning; Facing; Undercutting
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle-15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
