Kyocera

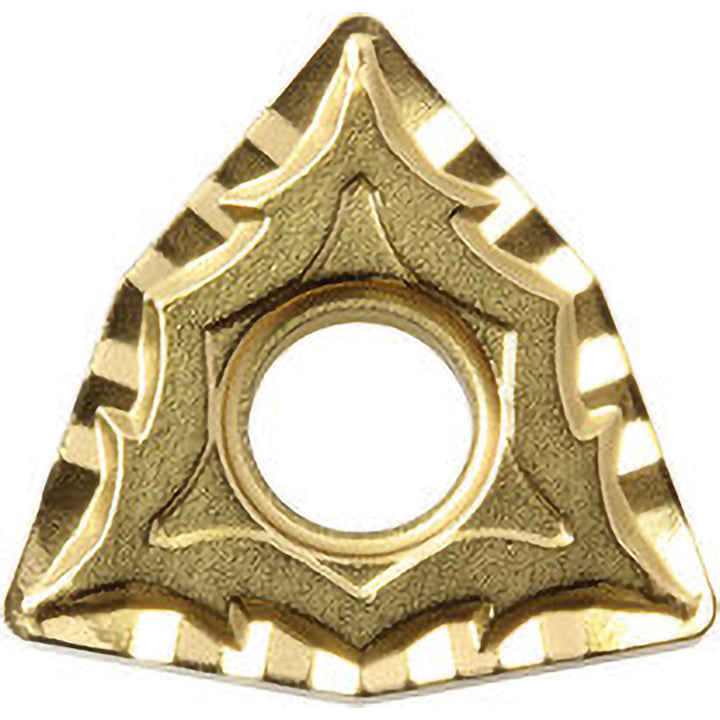

WNMG080408CQ Carbide Insert, Grade CA515, TiCN - Kyocera TAB08390
MFR# TAB08390ISO/ANSI# WNMG432CQCA515Series ISOI
$13.37List $19.23
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeCA515
MaterialCarbide
CoatingTiCN
Description
The Kyocera TAB08390 is a WNMG080408CQ carbide indexable insert, grade CA515, TiCN coated. Suited for steel.
Specifications
Chip breakerCQ
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2032
Included angle80
Industry standard numberWNMG432CQCA515
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408CQ
Length range0.6500 - 0.7000
Manufacturers catalog numberTAB08390
Manufacturer gradeCA515
Material gradeP01; P10; P20; P30
Maximum depth of cut0.2280
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle-12
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.684
Wiper edgeNo
