Kyocera

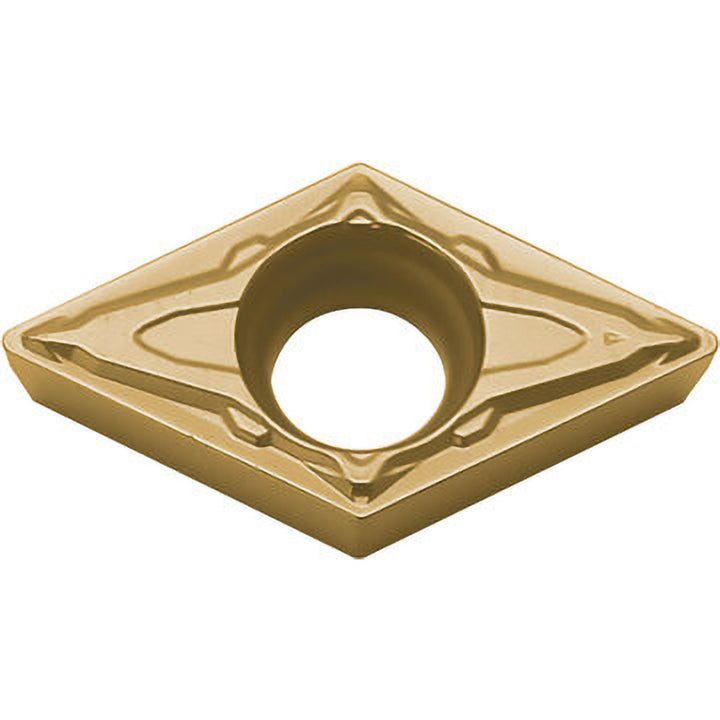

DCMT11T304PP Carbide Insert, Grade CA525, TiCN - Kyocera TAC01847
MFR# TAC01847ISO/ANSI# DCMT3251PPCA525Series ISOI
$19.36List $27.85
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeCA525
MaterialCarbide
CoatingTiCN
Description
The Kyocera TAC01847 is a DCMT11T304PP carbide indexable insert, grade CA525, TiCN coated. Suited for steel.
Specifications
Chip breakerPP
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle55degree
Industry standard numberDCMT3251PPCA525
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9140
Insert materialCarbide
Insert shapeDiamond 55
Insert size code3251
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304PP
Length range0.7000 - 10.0000
Manufacturers catalog numberTAC01847
Manufacturer gradeCA525
Material gradeP10; P20; P30
Maximum depth of cut0.3047
Multi use applicationBack Boring; Copying; External Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle10
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
