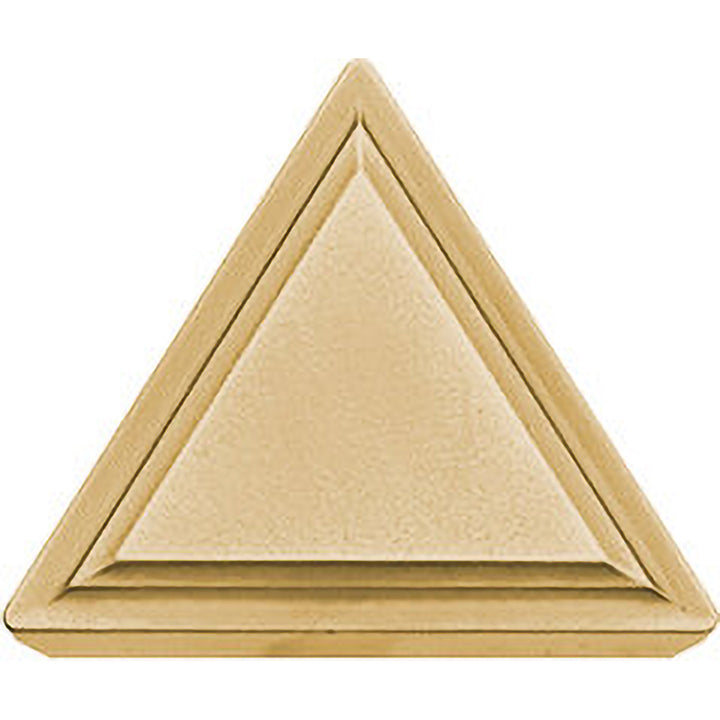

TPMR160308 Carbide Insert, Grade CA525, TiCN - Kyocera TAC06771

Kyocera

TPMR160308 Carbide Insert, Grade CA525, TiCN - Kyocera TAC06771

MFR# TAC06771ISO/ANSI# TPMR322CA525Series ISOI

$10.42List $14.99 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeCA525
MaterialCarbide
CoatingTiCN

Description

The Kyocera TAC06771 is a TPMR160308 carbide indexable insert, grade CA525, TiCN coated. Suited for steel.

Specifications

Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Full radiusNo
Included angle60degree
Industry standard numberTPMR322CA525
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6501
Insert materialCarbide
Insert shapeTriangle
Insert size code322
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR160308
Length range0.6500 - 0.7000
Manufacturers catalog numberTAC06771
Manufacturer gradeCA525
Material gradeP10; P20; P30
Maximum depth of cut0.2167
Multi use applicationBack Boring; Boring; Copying; External Turning; Internal Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width0.6501in
Wiper edgeNo
