Kyocera

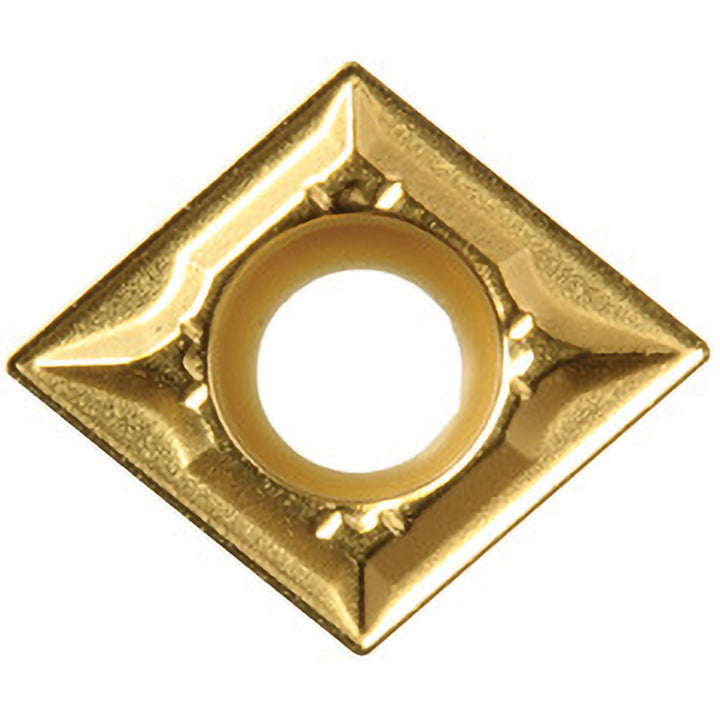

CCMT060202GK Carbide Insert, Grade CA530, TiCN - Kyocera TAD00435
MFR# TAD00435ISO/ANSI# CCMT060202Series ISOI
$11.68List $16.52
Save 29%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeCA530
MaterialCarbide
CoatingTiCN
Description
The Kyocera TAD00435 is a CCMT060202GK carbide indexable insert, grade CA530, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCCMT21505
Ansi size code21505
Chip breakerGK
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1102
Included angle80
Industry standard numberCCMT21505GKCA530
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length in1-1/64
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21505
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060202GK
Iso insert codeCCMT060202
Iso size code060202
Length range0.0000 - 0.3000
Manufacturers catalog numberTAD00435
Manufacturer gradeCA530
Material gradeP20; P30; P40
Maximum depth of cut0.0833
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle17
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
