Kyocera

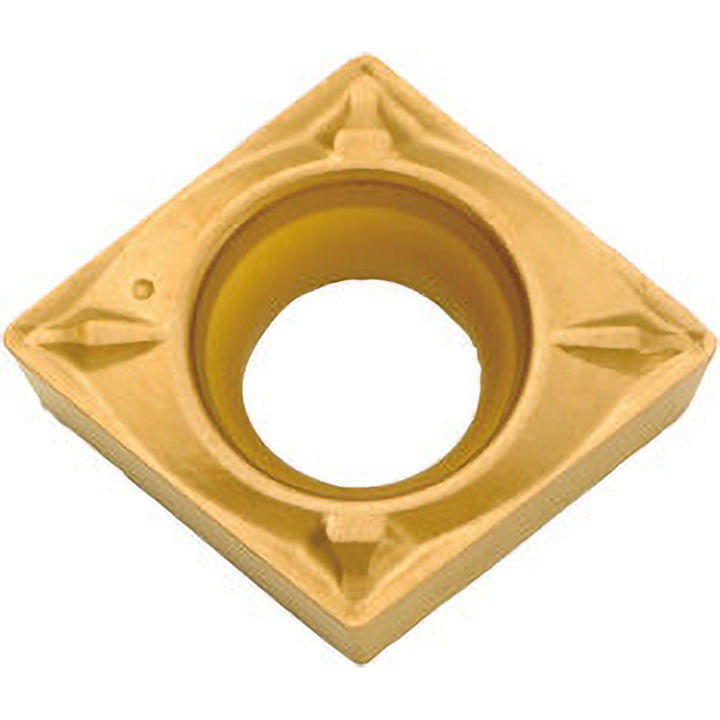

CCMT060204WP Carbide Insert, Grade CA530, TiCN - Kyocera TAD00446
MFR# TAD00446ISO/ANSI# CCMT060204Series ISOI
$11.48List $16.52
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeCA530
MaterialCarbide
CoatingTiCN
Description
The Kyocera TAD00446 is a CCMT060204WP carbide indexable insert, grade CA530, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCCMT2151
Ansi size code2151
Chip breakerWP
Chip breaker operationWiper - Finishing
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1102
Included angle80
Industry standard numberCCMT2151WPCA530
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length in1/4
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2151
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204WP
Iso insert codeCCMT060204
Iso size code060204
Length range0.0000 - 0.3000
Manufacturers catalog numberTAD00446
Manufacturer gradeCA530
Material gradeP20; P30; P40
Maximum depth of cut0.0833
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle20
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeYes
