Kyocera

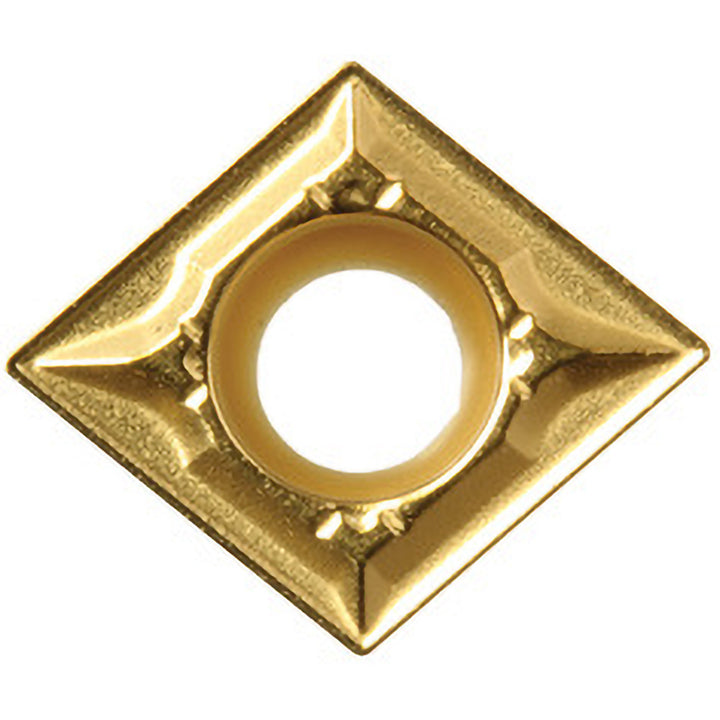

CCMT09T302GK Carbide Insert, Grade CA530, TiCN - Kyocera TAD00485
MFR# TAD00485ISO/ANSI# CCMT09T302Series ISOI
$13.05List $18.78
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeCA530
MaterialCarbide
CoatingTiCN
Description
The Kyocera TAD00485 is a CCMT09T302GK carbide indexable insert, grade CA530, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCCMT32505
Ansi size code32505
Chip breakerGK
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle80
Industry standard numberCCMT32505GKCA530
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32505
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T302GK
Iso insert codeCCMT09T302
Iso size code09T302
Length range0.3000 - 0.4000
Manufacturers catalog numberTAD00485
Manufacturer gradeCA530
Material gradeP20; P30; P40
Maximum depth of cut0.1250
Maximum depth of cut frac in1/8
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle17
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
