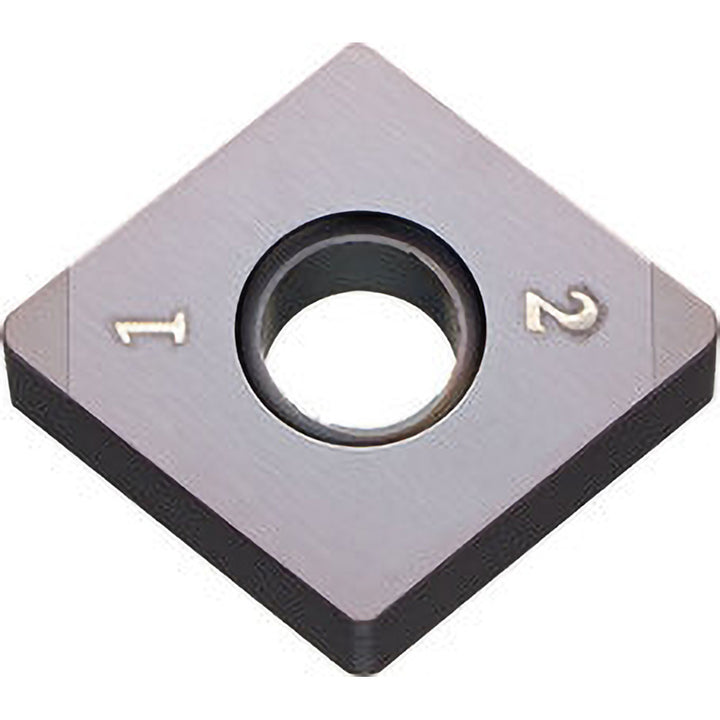

CNGA120412S01730MET Cubic Boron Nitride (CBN) Insert, Grade KBN35M, MEGACOAT - Kyocera TBA01462

Kyocera

CNGA120412S01730MET Cubic Boron Nitride (CBN) Insert, Grade KBN35M, MEGACOAT - Kyocera TBA01462

MFR# TBA01462ISO/ANSI# CNGA433S00730METKBN35MSeries ISOI

$69.30List $99.73 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeKBN35M
MaterialCubic Boron Nitride (CBN)
CoatingMEGACOAT

Description

The Kyocera TBA01462 is a CNGA120412S01730MET cubic boron nitride (cbn) indexable insert, grade KBN35M, MEGACOAT coated. Suited for hard material.

Specifications

Clearance codeN
Coating finishMEGACOAT
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNGA433S00730METKBN35M
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond 80
Insert size code433
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA120412S01730MET
Length range0.5000 - 0.6000
Manufacturers catalog numberTBA01462
Manufacturer gradeKBN35M
Material gradeH01; H10
Maximum depth of cut0.0984
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0984
Tolerance codeG
Width in1/2in
Wiper edgeNo
