Kyocera

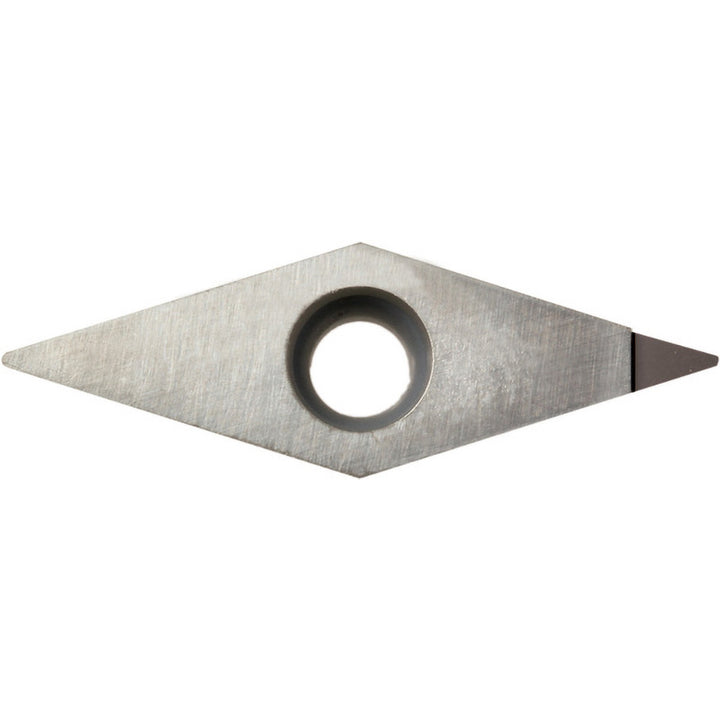

VBMT110301 PCD Insert, Grade KPD010 - Kyocera TBE00902
MFR# TBE00902ISO/ANSI# VBMT2202KPD010Series ISOI
$173.34List $249.43
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradeKPD010
MaterialPCD
Description
The Kyocera TBE00902 is a VBMT110301 pcd indexable insert, grade KPD010. Suited for non-ferrous metal, superalloys.
Specifications
Clearance codeB
Coating processUncoated
Corner radius in1/256
Full radiusNo
Hole diameter0.1102
Included angle35degree
Industry standard numberVBMT2202KPD010
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8720
Insert materialPCD
Insert shapeDiamond 35
Insert size code2202
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT110301
Length range0.7000 - 10.0000
Manufacturers catalog numberTBE00902
Manufacturer gradeKPD010
Material gradeN10; N20
Maximum depth of cut0.1181
Multi use applicationBack Boring; Copying; External Turning; Facing; Internal Facing; Profiling; Undercutting
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal; Superalloys
RakePositive
Rake angle10
Relief angle5
Secondary workpiece materialSuperalloy
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tip length0.1181
Tolerance codeM
Width in1/4in
Wiper edgeNo
