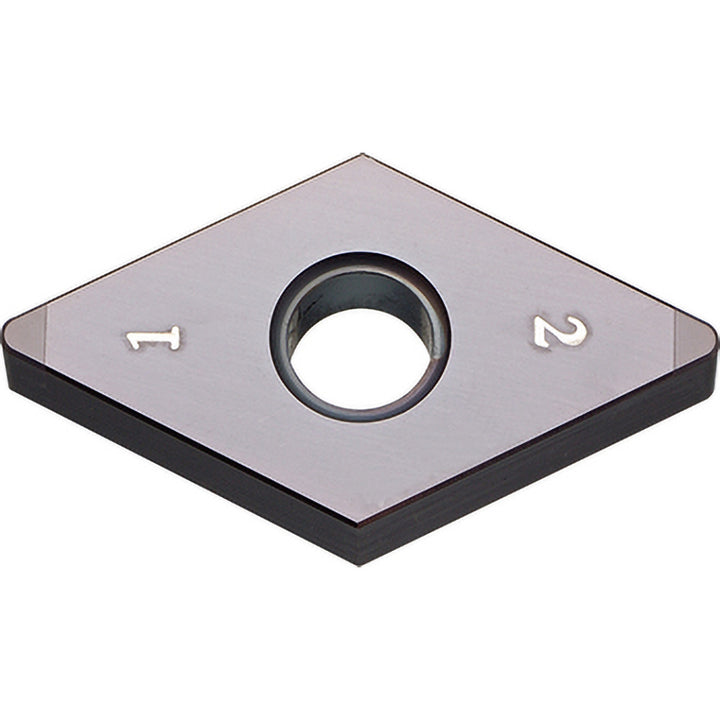

DNGA150412ME4 CBN Insert, Grade KBN05M, MEGACOAT - Kyocera TBN02322
MFR# TBN02322ISO/ANSI# DNGA150412Series ISOI
$95.32List $134.78
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeKBN05M
MaterialCBN
CoatingMEGACOAT
Description
The Kyocera TBN02322 is a DNGA150412ME4 cbn indexable insert, grade KBN05M, MEGACOAT coated. Suited for hard material.
Specifications
Ansi insert codeDNGA433
Ansi size code433
Clearance codeN
Coating finishMEGACOAT
Coating processPVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsHardened Materials (H) - High Wear-Resistance
Hole diameter0.2032
Included angle55
Industry standard numberDNGA433ME4KBN05M
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.1820
Insert materialCBN
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code433
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA150412ME4
Iso insert codeDNGA150412
Iso size code150412
Length range0.7000 - 10.0000
Manufacturers catalog numberTBN02322
Manufacturer gradeKBN05M
Material gradeH01; H10
Maximum depth of cut0.0748
Multi use applicationBoring; Copying; External Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0748
Tolerance codeG
Width in1/2
Wiper edgeNo
